Mold Design and Manufacturing: How Inspection Logic Should Be Built Into Toolin

By the time a mold reaches its first trial, most of the decisions that determine whether it passes have already been made. Inspection is not a final step in mold design and manufacturing. It is a planning discipline that starts at the design stage and runs through every phase of the build. When the right dimensions are defined early, verified at each stage, and confirmed before assembly, the first trial can focus more on validation and less on avoidable discovery.

What Inspection Logic Means in Mold Manufacturing

Inspection logic is not a checklist added at the end of the mold build. It is a set of decisions made during mold design that determine what gets measured, when it gets measured, and what the acceptance criteria are at each stage of the manufacturing process.

In practice, this means identifying the dimensions and features that are critical to part quality before machining begins, defining how those features will be verified at each production stage, and building those checkpoints into the project plan rather than treating inspection as a separate activity that happens after the real work is done.

Precision mold manufacturing that applies inspection logic from the design stage produces better outcomes for a straightforward reason. Problems found during design or early machining are inexpensive to correct. The same problems found during trial molding require mold modifications, additional trials, and schedule delays. The earlier an issue is caught, the lower the cost of fixing it.

How Critical Dimensions Are Defined Before Machining

Before any steel is cut, the mold design team needs to identify which dimensions are critical, meaning which ones directly affect whether the molded part meets its functional and assembly requirements. Not every dimension in a mold carries the same risk, and treating them all the same wastes inspection effort and misses the features that actually matter.

Identifying Critical Features From the Part Drawing

Critical dimensions in a mold typically trace back to critical dimensions in the part. If the part drawing calls out a tight tolerance on a mating surface, the corresponding cavity dimension in the mold is critical. If a part has a snap-fit feature that must engage within a narrow force range, the geometry that controls that feature in the mold is critical.

This connection between part requirements and mold inspection priorities is what makes plastic injection mold design services most effective when engineering reviews the part drawing before mold design begins, rather than after. The inspection plan for the mold should be derivable from the part's functional requirements.

Accounting for Shrinkage and Process Variation

Cavity dimensions in a mold are not the same as part dimensions. Plastic shrinks as it cools, so the mold cavity must be sized to account for that shrinkage. The expected shrinkage rate depends on the material, wall thickness, cooling rate, and processing parameters. Getting this calculation wrong means the mold produces parts that are consistently out of tolerance, even if the mold itself was machined perfectly.

Before machining begins, the shrinkage compensation applied to each critical dimension should be documented and agreed upon. This becomes part of the inspection baseline. If a machined cavity dimension is checked against the wrong target, the inspection result is meaningless even if the measurement itself is accurate.

Why Mold Components Need Verification Before Assembly

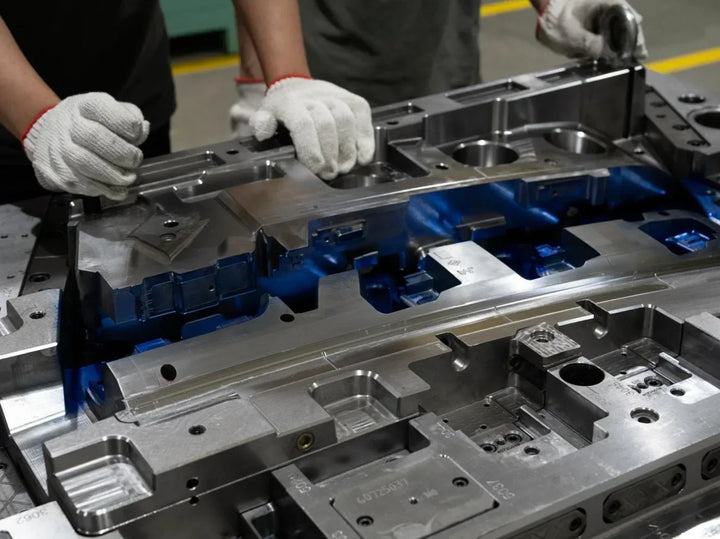

Once machining is complete, each mold component needs to be verified before assembly begins. This is one of the most important checkpoints in the entire mold tooling process, and it is often compressed under schedule pressure in ways that create problems later.

Individual components that are out of tolerance can still be corrected at this stage without affecting the overall assembly. Once components are assembled into the complete mold, the same issues become much harder to access and correct. A core insert that is slightly undersized can be reworked on the bench in hours. The same issue discovered after assembly, during trial molding, requires disassembly, correction, reassembly, and a repeat trial.

Key components that require individual verification before assembly include:

• Core and cavity inserts: Checked for dimensional accuracy against the mold design, with particular attention to critical feature dimensions
• Side actions and lifters: Verified for correct travel distance, stroke limit, and fit with the core and cavity geometry they interact with
• Ejector pins and sleeves: Checked for correct length, diameter, and fit in their respective holes
• Cooling circuit components: Verified for correct routing, connection fit, and absence of obstruction before the mold is closed

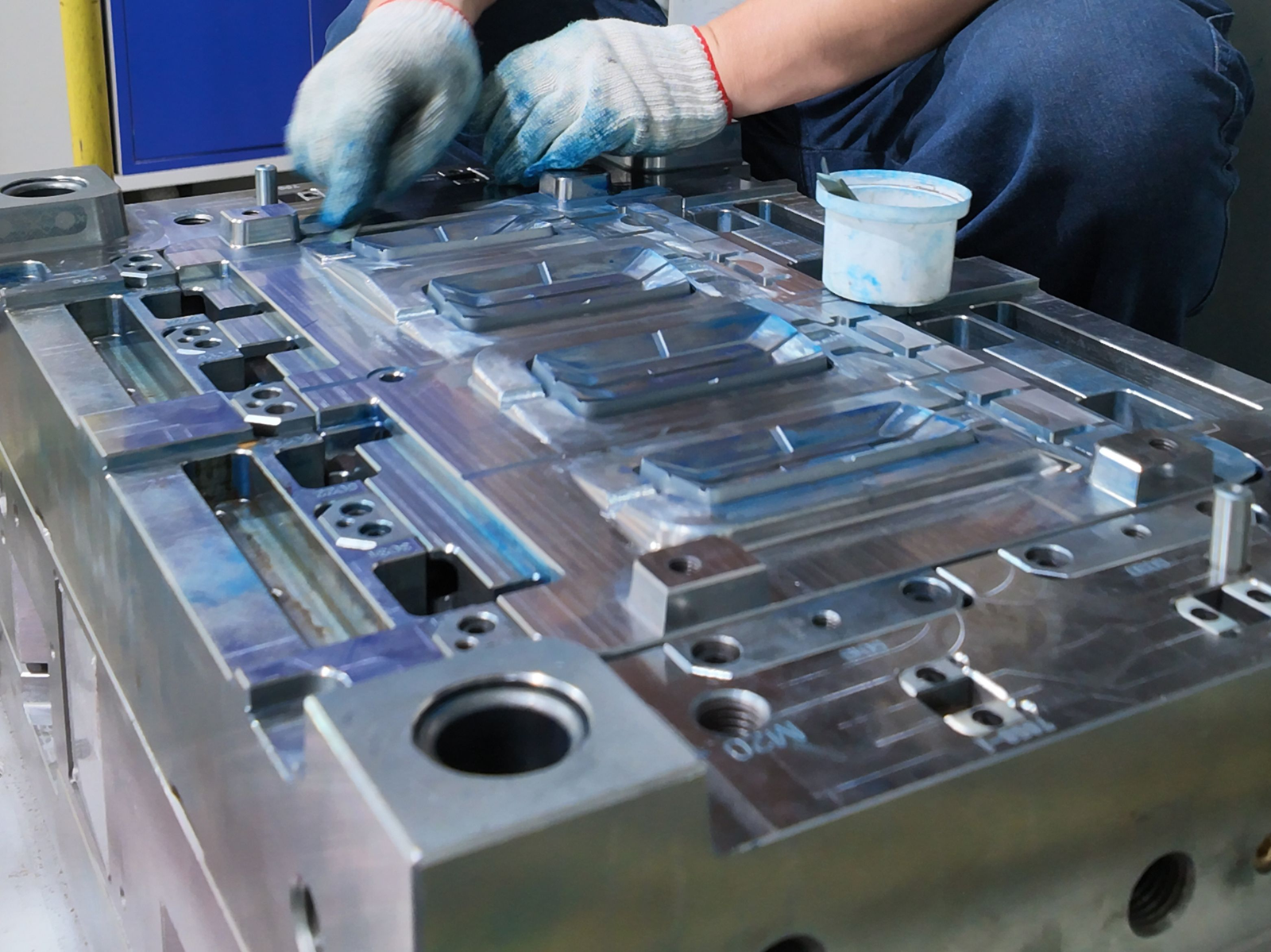

• Parting surface contact: Checked across the full mold face to confirm even contact and correct shut-off geometry

Each of these verifications adds time to the pre-assembly stage. Each one also reduces the probability that the first trial produces results that require the mold to be taken apart again.

How Built-In Inspection Planning Reduces Trial Uncertainty

Trial molding, particularly the first trial, is where the entire mold build gets tested against real production conditions. The purpose of a well-planned first trial is not to discover whether the mold works. It is to confirm that it works as expected, based on the inspection and verification work done throughout the build.

When inspection logic is built into mold design and manufacturing from the start, the first trial carries far less uncertainty. The critical dimensions have been defined, verified at machining, and checked before assembly. The cooling system has been tested. The ejection system has been confirmed to operate correctly. What the trial needs to determine is whether the complete integrated system, mold plus process parameters, produces parts that meet the part drawing.

The table below shows how inspection timing affects the cost and impact of corrections at different project stages.

The table reinforces a consistent pattern. Earlier detection is usually less costly and less disruptive, and inspection logic built into the process is what makes earlier detection possible.

A mold project that reaches trial with key dimensions verified and major components checked is better prepared for first article evaluation. The trial still needs to confirm how the complete mold and molding process work together, but it can focus more on validation and adjustment rather than uncovering avoidable issues that could have been found earlier.

Plan Inspection Into the Mold Before the First Cut

Mold design and manufacturing work best when inspection is planned before machining begins. Defining what needs to be checked, when it should be checked, and how results should be evaluated helps reduce avoidable trial issues and supports a more controlled tooling process. When key dimensions and components are verified earlier, the first trial can focus more on validation and less on avoidable discovery.

Mold Design and Manufacturing at WEILAN MFG

WEILAN MFG applies inspection planning from the earliest stages of mold design, defining critical dimensions, verification methods, and acceptance criteria before machining begins. Our team conducts component-level inspection before assembly and structured first article evaluation before production approval. Contact WEILAN MFG to discuss your mold tooling project with our engineering team.

Frequently Asked Questions About Mold Manufacturing Inspection

Q1. What Is Inspection Logic in Mold Manufacturing?

Inspection logic means deciding what should be measured, how it should be measured, and when each check should happen during the mold build. Instead of leaving all checks until the end, the team verifies key features during design, machining, assembly, and trial preparation. This helps catch issues earlier, when they are usually easier to correct.

Q2. Why Are Critical Mold Dimensions Different From Part Drawing Dimensions?

Mold cavity dimensions are not always the same as final part dimensions because plastic shrinks as it cools. The mold must account for material shrinkage, wall thickness, cooling behavior, and processing conditions. If shrinkage compensation is not calculated correctly, the molded part may miss its target dimensions even when the mold has been machined accurately.

Q3. How Does Precision Mold Manufacturing Differ From Simpler Tooling Programs?

Precision mold manufacturing places more focus on critical dimensions, material selection, machining accuracy, inspection records, and production stability. It is often used for parts with tight fits, fine surface requirements, or long production needs. Simpler tooling programs may be suitable for lower-volume or less demanding applications. The right approach depends on the part requirements and production goals.

Q4. What Happens When a Mold Component Does Not Pass Inspection Before Assembly?

The team reviews the issue and decides what correction is needed before assembly continues. Depending on the component and the inspection result, this may involve additional machining, EDM work, polishing, or local adjustment. Finding the issue before assembly is usually less disruptive than finding it after the mold has already been assembled and tested.

Q5. How Does Mold Tooling Inspection Affect the First Production Trial?

Mold tooling inspection helps the first trial start with fewer avoidable uncertainties. Key dimensions, component fit, cooling circuits, ejection movement, and other important features can be checked before the mold runs in the machine. The first trial still verifies the complete mold and process together, but earlier inspection helps reduce problems that could have been found before trial.
