Blow Molding vs. Injection Molding: Key Differences Explained

Manufacturing plastic components requires a deep understanding of how raw polymers transform into finished goods. Selecting the right fabrication method directly impacts production speed, structural integrity, and the total cost of ownership for a product line. For engineering teams and procurement managers, navigating the technical trade-offs of Blow Molding and Injection Molding is a critical step in bringing a high-performance, cost-effective product to the global market.

Core Manufacturing Mechanics: How Plastic Parts Take Shape

Grasping the physical movement of molten polymers is the first step in identifying the most efficient production path. These processes rely on distinct mechanical principles to achieve their final geometric forms through heat and pressure.

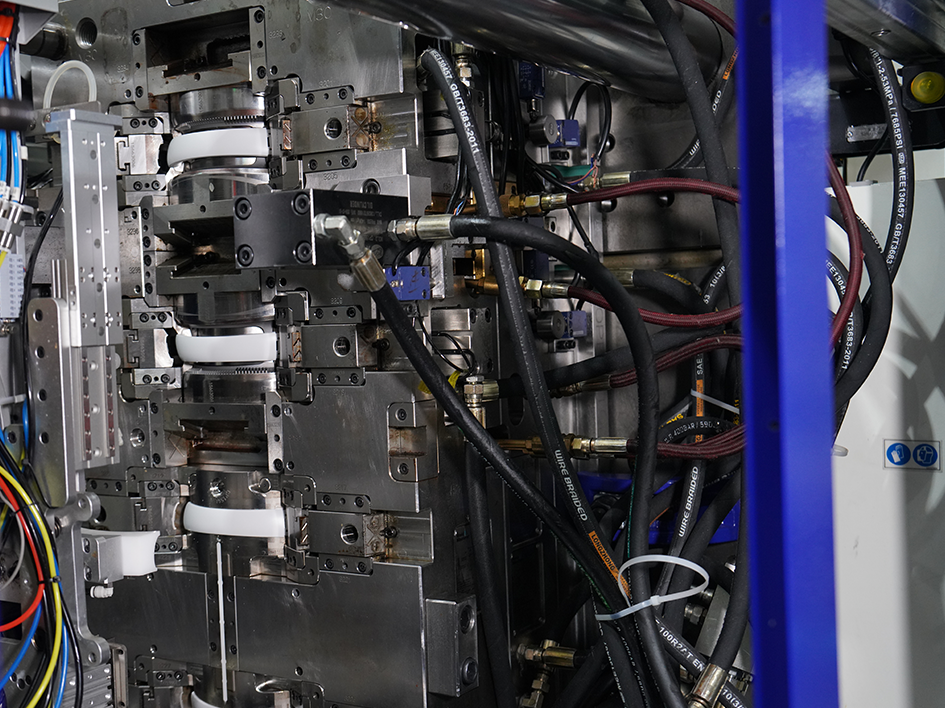

The Precision of Injection Molding: Forcing Molten Plastic into Precision Steel Dies

Injection molding is widely considered the most versatile and precise method for producing complex plastic parts. This process utilizes a highly controlled sequence of events to produce identical components with extreme repeatability. Technical guides from the British Plastics Federation detail how the reciprocating screw design manages consistent melt quality and pressure to ensure every cycle meets rigorous industrial standards.

The Sequential Fabrication Process

The transformation from raw polymer to a finished part relies on a specific four stage mechanical cycle.

• Material Preparation: Thermoplastic granules are fed from a central hopper into a heated barrel. This ensures a steady supply of raw material for continuous production.
• Melting and Shearing: A reciprocating screw moves the material forward within the barrel. The plastic melts through a combination of external heat and mechanical shear. This shearing action is vital because it creates a uniform temperature and viscosity throughout the melt.
• High Pressure Injection: Once the plastic reaches the required viscosity, the machine injects it under extreme pressure into a custom engineered metal mold. The speed and force of this injection allow the polymer to fill every microscopic detail of the mold cavity.
• Cooling and Ejection: High clamping force holds the two halves of the mold together while the plastic fills the space. After the part cools within water cooled channels, the mold opens. Ejector pins then push the finished part out to complete the cycle.

Structural Integrity and Surface Detail

Because the material enters the cavity at such high pressure, the resulting parts are exceptionally dense and structural. This method allows manufacturers to hold fine textures or micro details on the surface of the component. The technical complexity of the process enables engineers to integrate specific features directly into the plastic body during a single cycle. These features include undercuts, living hinges, and metal inserts. By incorporating these elements during the molding phase, companies can eliminate secondary assembly steps and maintain long term profitability for high performance product lines.

The Versatility of Blow Molding: Inflating Heated Parisons into Hollow Shells

Blow molding operates on a principle similar to traditional glass blowing but adapted for high volume industrial plastic production. It serves as the primary solution for creating hollow objects where the weight to strength ratio and internal volume are the primary concerns. Technical overviews from Plastipedia explain the nuances between extrusion and stretch methods used for different container types, highlighting how the process can be scaled for various industrial needs.

The Blow Molding Production Cycle

The process follows a specific sequence to transform a molten tube into a finished, lightweight container.

• Parison Formation The process begins with the creation of a parison, which is a hot and hollow tube of molten plastic. This tube acts as the foundation for the final shape of the part.
• Mold Closure In extrusion blow molding, this tube drops vertically between two halves of a mold. The mold halves then close and pinch the bottom to create a hermetic seal.
• Air Expansion Compressed air is injected into the top of the parison. This forces the soft plastic to expand outward until it meets the cold walls of the mold cavity.
• Solidification The plastic takes the shape of the mold while remaining hollow. After the part cools within the mold, the tool opens to reveal a finished container or shell.

Optimization of Hollow Vessels

Unlike the high pressure injection process, blow molding relies on air pressure to define the outer surface. While this limits the complexity of the internal geometry, it excels at creating closed vessels that would be difficult or impossible to manufacture through other means.

Advanced machines can program the parison thickness at specific points. This ensures that corners do not become too thin during the expansion phase, which is a common challenge when creating deep or angular containers. By controlling the distribution of material, manufacturers can produce items like fuel tanks, storage vats, and large consumer goods that maintain structural integrity while remaining as light as possible. This efficiency in material usage contributes to the long term profitability of high volume packaging and industrial product lines.

Fundamental Process Comparison

Feature	Injection Molding	Blow Molding
Physical Action	Injecting molten plastic into a solid cavity	Blowing air into a hollow plastic tube
Primary Force	High hydraulic pressure (thousands of PSI)	Low pneumatic pressure (air)
Internal Form	Defined by the mold core (solid or ribbed)	Defined by air expansion (hollow)
Mold Material	Hardened steel or high-grade alloys	Aluminum or beryllium copper

Side-By-Side Comparison: Critical Differences and Performance

Comparing Blow Molding vs. Injection Molding reveals that while both processes use heat to shape plastic, they serve entirely different functional purposes. These differences dictate the long-term profitability of a product.

Part Geometry and Design Complexity

The most fundamental difference lies in the shape of the part itself. Injection Molding is the ideal solution for solid parts or components with intricate details. Because the plastic is injected into a solid cavity, engineers can design parts with varying wall thicknesses, internal lattices, and complex mounting bosses. This versatility allows for the creation of components that are structural and rigid.

In contrast, blow molding is strictly for hollow objects. The process naturally creates a uniform outer shell, but it cannot easily produce complex internal structures. Designers must account for specific constraints:

• Stretching: The plastic stretches as it expands, which can lead to thinning at sharp corners or deep draws.
• Internal Dividers: Solid cross-sections or internal walls are generally not possible without secondary assembly.
• Surface Finish: While outer surfaces can be textured, the inner surface is determined by air pressure and is usually smoother and less controlled.

Tooling and Startup Costs

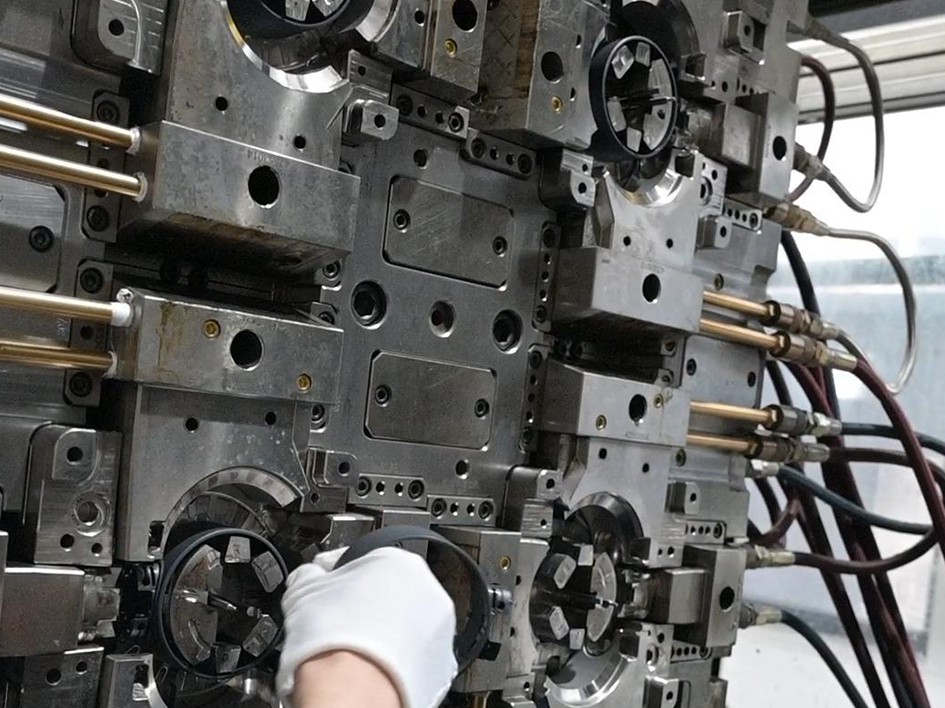

The financial barrier to entry varies significantly between these two methods. Injection Molding tools are typically constructed from hardened steel to withstand immense pressure. These molds require precision CNC machining and electrical discharge machining to create fine details. Thomasnet provides a breakdown of tooling costs illustrating why injection molding requires higher initial capital.

Blow molding tools are generally less expensive because the process operates at much lower pressures. Key cost drivers include:

• Material: Blow molds are often made from aluminum, which is easier to machine and provides excellent thermal conductivity.
• Reinforcement: Since air pressure is relatively low, molds do not need the same level of structural reinforcement as steel injection tools.
• Lead Time: Because they are simpler to manufacture, blow molds can often be produced in half the time required for a complex steel injection tool.

Production Speed and Volume Efficiency

Efficiency is a major factor when evaluating Blow Molding vs. Injection Molding for large-scale projects. Injection Molding is widely considered the faster process for high-volume runs. A single mold can have multiple cavities, allowing a manufacturer to produce dozens of parts in a single cycle. These cycles are often very short, sometimes lasting only a few seconds for small parts.

Blow molding cycles are generally longer because the hollow center of the part acts as an insulator. It takes more time for the heat to escape through the plastic and into the water-cooled mold walls when there is an air pocket in the middle. However, for large hollow items like plastic pallets or rain barrels, blow molding remains the most efficient high-volume solution available.

Material Compatibility and Engineering Properties

Both processes utilize thermoplastics, but the specific grades differ based on the physics of the forming method. Injection Molding requires materials with a high melt flow index, meaning the plastic flows easily into tiny crevices. Common materials include:

• Acrylonitrile Butadiene Styrene (ABS)
• Polycarbonate (PC)
• Nylon (PA)

Blow molding requires materials with high melt strength so the parison does not stretch or break under its own weight. High-density polyethylene (HDPE) and polyethylene terephthalate (PET) are the most common choices. The chemical properties of these thermoplastics are detailed on ScienceDirect for those needing deep technical specifications.

Technical and Economic Benchmarks

Parameter	Injection Molding	Blow Molding
Typical Tooling Cost	$5,000 to $200,000+	$2,000 to $50,000
Tolerances	Ultra-tight (+/- 0.05mm)	Moderate (+/- 0.25mm)
Cycle Times	Very fast (seconds)	Moderate (30 to 120 seconds)
Ideal Volume	High to extreme (10,000 to 1 million+)	Low to high (1,000 to 100,000+)
Surface Detail	High (textures, logos, gloss)	Moderate (limited to outer surface)

Real-World Applications: Identifying the Process in Daily Life

Understanding how these processes are used in daily life helps clarify which method fits a specific product category. The physical characteristics of objects often dictate the manufacturing choice.

Common Products Made via Injection Molding

Injection Molding is responsible for the majority of rigid plastic goods that require assembly or precise fitment. It is the standard for any product where the feel of the part and the quality of the surface finish are paramount. Common applications include:

• Electronics: Laptop housings, computer mice, and smartphone cases.
• Toys: LEGO bricks and complex action figures.
• Medical: Syringes, inhaler components, and surgical tools.
• Automotive: Dashboard assemblies, knobs, and interior panels.

Industrial and Consumer Uses for Blow Molding

Blow molding dominates the packaging and container industries. Its ability to create a lightweight yet strong vessel that can hold liquid is the hallmark of the process. Typical examples include:

• Packaging: Soda and water bottles, milk jugs, and detergent containers.
• Industrial: 55-gallon drums, fuel tanks, and chemical storage vats.
• Consumer Goods: Watering cans, plastic slides, and large storage bins.
• Automotive: Air intake ducts and coolant expansion tanks.

Material and Application Matrix

Product Type	Recommended Process	Common Material Used
Soda and Water Bottles	Blow Molding	PET
LEGO Bricks	Injection Molding	ABS
Gallon Milk Jugs	Blow Molding	HDPE
Medical Syringes	Injection Molding	Polypropylene
Car Bumpers	Injection Molding	Polypropylene (Modified)
Storage Drums	Blow Molding	HDPE

Strategic Decision Matrix: Choosing the Right Manufacturing Path

Selecting between manufacturing methods involves a balancing act between design requirements, budget constraints, and expected production volume. A systematic approach to this decision can prevent costly errors.

The first question to ask is whether the part is inherently hollow. If the primary function is to contain a substance, blow molding is the logical starting point. However, if the part requires high structural rigidity or complex interlocking features, Injection Molding is usually required. According to Plastics Industry Association, manufacturers are increasingly looking at total lifecycle costs rather than just initial setup fees when determining which production method to adopt.

Consider the following checklist:

• Is precision a priority? If your part must snap into another piece with a margin of error of less than 0.1 millimeters, injection molding is the only choice.
• What is the budget for tooling? If you need to minimize upfront startup costs for a large format part, blow molding is often more accessible.
• What is the target volume? High-volume solid components benefit from the multi-cavity efficiency of steel injection molds over the long term.

Selection Checklist for Developers

Parameter	Injection Molding	Blow Molding
Typical Tooling Cost	$5,000 to $200,000+	$2,000 to $50,000
Tolerances	Ultra-tight (+/- 0.05mm)	Moderate (+/- 0.25mm)
Cycle Times	Very fast (seconds)	Moderate (30 to 120 seconds)
Ideal Volume	High to extreme (10,000 to 1 million+)	Low to high (1,000 to 100,000+)
Surface Detail	High (textures, logos, gloss)	Moderate (limited to outer surface)

FAQs

Q1: Which Process Is More Environmentally Friendly?

While both methods utilize recyclable thermoplastics, Injection Molding typically produces less waste. Blow molding generates "flash" (excess material pinched off at the top and bottom of the mold) that must be trimmed and reground for reuse. Modern injection molding systems are highly optimized to minimize scrap, and those equipped with hot runner systems can almost entirely eliminate waste material within the mold itself.

Q2: Can I Achieve a High-Gloss Finish with Blow Molding?

It is difficult to achieve a true mirror-like finish with blow molding because air pressure cannot match the intensity of a hydraulic ram. Injection Molding is the superior choice for high-aesthetic parts; the extreme pressure forces molten plastic to mirror every detail of a polished steel tool, resulting in superior surface quality and consistent texture.

Q3: How Do Tolerances Differ Between the Two Methods?

Injection Molding is significantly more precise, often maintaining tolerances within ±0.05mm. Because blow molding involves expanding a soft parison (hollow tube) with air, wall thickness can vary, making it difficult to maintain tight tolerances on multiple dimensions simultaneously. If your part requires a precision fit with other components, injection molding is the necessary choice.

Q4: Is It Possible to Use Multiple Colors in a Single Part?

Yes, but this is a distinct advantage of the Injection Molding process through multi-shot (or 2K) molding. This technique allows two different colors or materials to be injected into the same mold sequentially. Blow molding is generally limited to a single color and material per part, as the parison usually consists of a uniform, homogeneous melt.

Q5: What Is the Typical Lead Time for New Tooling?

Blow molding tools, often made of aluminum, can typically be manufactured within 4 to 6 weeks. In contrast, high-precision steel tools for Injection Molding usually require 8 to 12 weeks to design, machine, and test. While the initial lead time is longer, the durability and multi-cavity efficiency of steel tools provide a significantly lower per-part cost over long-term, high-volume production.
