A Complete Guide to Overmolding

Imagine holding a premium power tool or a high-end toothbrush. The soft, grippy texture fused perfectly onto the rigid plastic body did not happen through luck. That seamless connection comes from a specialized manufacturing technique called overmolding. It allows engineers to combine different materials into one solid part. Understanding the mechanics of the bond helps designers create products that look better, last longer, and feel more comfortable in the hand.

What Is Overmolding?

Overmolding is a multi-stage injection molding process. A single part is manufactured using two or more different materials, typically a soft elastomer layered over a rigid plastic or metal base.

Think of the technique as a way to "skin" a product with protective or functional layers. The base component, known as the substrate, is produced first. A second material, the overmould, is then injected directly over or around the substrate. The result is a unified component that functions as a single piece without the need for adhesives, screws, or ultrasonic welding. Because the materials bond through chemical adhesion or physical interlocking, the bond remains highly durable under demanding industrial conditions.

Overmolding vs. Insert Molding vs. 2K Multi-Shot Molding

Choosing the right production method dictates the final cost and quality of the product. While these three terms are often used interchangeably, they represent distinct mechanical approaches with different tooling requirements.

Knowing the differences between these methods helps project managers allocate budgets effectively. Insert molding involves placing a pre-fabricated part into a mould and injecting plastic around it. Such a method is ideal for adding metal threads or electronics to a plastic housing. In contrast, 2K or multi-shot molding uses a complex machine with two separate injection barrels. The machine rotates the mould after the first injection, allowing the second material to flow immediately. 2K molding serves high-volume production where precision and speed are the top priorities. Standard overmolding usually refers to a two-step process where the substrate is moved from one machine to another, offering a balance of lower tooling costs and high design flexibility.

The Overmolding Process in Plastic Injection Molding： Step-By-Step

Success in production requires a series of carefully timed mechanical movements. Each stage must happen within specific temperature ranges to ensure a strong bond between the different layers of the component.

The cycle begins with the fabrication of the substrate. Once the rigid base has stabilized, it is transferred to the second mold cavity for the overmolding stage. Some factories use robotic arms to transfer the parts, whereas others rely on manual placement. During the second stage, the overmould resin enters the cavity under high pressure. The heat from the molten resin slightly melts the surface of the substrate, creating a chemical fuse. Finally, the part undergoes a controlled cooling phase. Precise cooling prevents the materials from pulling apart due to different shrinkage rates, yielding a finished product ready for immediate use.

Common Material Combinations and Their Benefits

Selecting the right pair of materials is the most critical decision in the design phase. Certain polymers bond naturally, while others require mechanical locks to stay attached over time.

Rigid Plastic Over Rigid Plastic

Using two types of hard plastic allows for striking visual designs and reinforced structures. Designers often use the method to create clear windows in opaque housings or to add contrasting colors for branding. Such a combination provides excellent structural integrity while reducing the weight of the assembly.

Soft Elastomer Over Rigid Plastic

The most common application involves layering Thermoplastic Elastomer (TPE) or Thermoplastic Polyurethane (TPU) over materials like ABS or Polycarbonate. These grips provide ergonomic comfort and slip resistance. The soft layer acts as a shock absorber, protecting the internal components from drops or heavy vibrations during operation.

Rubber or Elastomer Over Metal

Industrial applications often require the strength of steel combined with the sealing properties of rubber. Overmolding an elastomer onto a metal insert creates a permanent gasket or protective sleeve. The metal provides the skeleton, while the rubber offers a waterproof barrier or a non-marring surface for delicate tasks.

Why Manufacturers Choose Overmolding for Product Design

Beyond the tactile feel of a product, the technique offers significant financial and functional advantages. It solves complex engineering problems that traditional assembly methods simply cannot handle effectively.

Eliminating the assembly line is a primary driver for using the method. When a part comes out of the mould finished, the need for manual labor to glue or screw pieces together disappears. Reduced part counts lead to fewer points of failure. Additionally, the process creates airtight and watertight seals that are impossible to achieve with separate gaskets. Integrated seals stay in place for the life of the product, preventing leaks in medical devices or underwater electronics. The aesthetic appeal also allows companies to charge a premium for products that look and feel high-quality.

Key Materials and Chemical Compatibility

A bond is only as strong as the chemistry between the resins. Without compatibility, the overmould will peel away like a sticker, ruining the functionality of the entire component.

Resin manufacturers provide detailed compatibility charts that every engineer must consult. For example, TPE bonds exceptionally well with ABS, Polycarbonate, and Nylon. However, materials like Polypropylene or Polyethylene are notoriously difficult to bond with without specialized chemical primers or surface treatments. Thermoplastic Polyurethane (TPU) is another popular choice for the overmould layer because of its high abrasion resistance and oil compatibility. When chemical bonding is impossible, designers must rely on mechanical interlocking to secure the layers, adding complexity to the mould design but guaranteeing the materials stay together.

Design for Manufacturing for Overmoulded Parts

Creating a blueprint for an overmoulded part requires a deep understanding of physics and fluid dynamics. Small errors in the design phase often lead to expensive defects during the production run.

Adhesion Methods: Chemical vs. Mechanical Bonding

Relying solely on chemical fusion is risky if the product faces extreme temperatures or chemicals. Designers often include "mechanical interlocks," which are holes, grooves, or wrap-around features in the substrate. These features allow the molten overmould to flow through and wrap around the base, physically locking the two pieces together regardless of chemical affinity.

Optimal Wall Thickness and Shrinkage Control

If the overmould is too thick, it will shrink more than the substrate during cooling, causing the part to warp. Maintaining a wall thickness between 1.5mm and 3mm is usually ideal. Consistent thickness throughout the part facilitates even cooling and reduces the risk of internal stresses that could lead to cracking or delamination over time.

Precision Mould Design and Shut-Off Areas

The "shut-off" is the area where the mould halves meet to prevent material from leaking. Because the overmould flows over a pre-existing part, the seal must be incredibly tight. Any gap will cause "flash," which is excess plastic that looks messy and requires manual trimming. High-precision tooling is necessary to maintain clean parting lines.

Surface Texture and Ergonomic Grip Design

The texture of the mould surface dictates how the final product feels. A smooth mould produces a glossy finish, but a textured mould creates a matte, high-friction grip. Designers must calculate the draft angles carefully. A part with a heavy texture needs a steeper angle to exit the mould without tearing the soft material during ejection.

Industry-Specific Applications of Overmolding

The versatility of the process makes it a staple in almost every modern industry. From the operating room to the dashboard of a luxury car, the technology is everywhere.

Medical Components

In the medical field, hygiene is the top priority. Overmoulded grips on surgical instruments provide a non-porous surface that is easy to sterilize. Integrated seals in catheters and fluid delivery systems prevent contamination. The soft-touch surfaces also reduce hand fatigue for surgeons during long procedures, enhancing the safety of the operation.

Automotive Parts

Cars use the technology for both beauty and function. Dashboard buttons often feature overmoulded icons that allow light to shine through while feeling soft to the touch. Under the hood, vibration-dampening mounts and weather-resistant wiring connectors rely on the permanent bond between plastic and elastomers to survive harsh environments.

Consumer Electronics

Smartphones and wearables are perhaps the most visible examples of the craft. Protective phone cases use a hard outer shell with a soft inner liner to absorb impacts. Fitness trackers often use a single overmoulded strap that houses the sensitive electronics, keeping water and sweat away from the internal circuitry.

Industrial Tools and Handles

Heavy-duty drills, saws, and wrenches require grips that can withstand oil, grease, and impact. Overmolding allows these tools to have a rugged, hard-shell body with an ergonomic grip that reduces the "buzz" felt by the operator. Such a design increases both the safety and the comfort of the user.

Common Production Challenges and Troubleshooting

Even with a perfect design, the manufacturing environment introduces variables like humidity and temperature fluctuations. Monitoring these factors is essential to maintaining a low scrap rate.

Delamination is the most common headache. If the substrate is too cold or contaminated with finger oils, the overmould will fail to stick. Maintaining a clean room environment and pre-heating the substrate can solve this issue. Another challenge is "melt-through," where the hot overmould resin actually melts too much of the substrate, causing the two colors to bleed together. This usually requires adjusting the injection speed or the temperature of the second resin. Consistent monitoring of the machine settings helps technicians catch these problems before thousands of defective parts are produced.

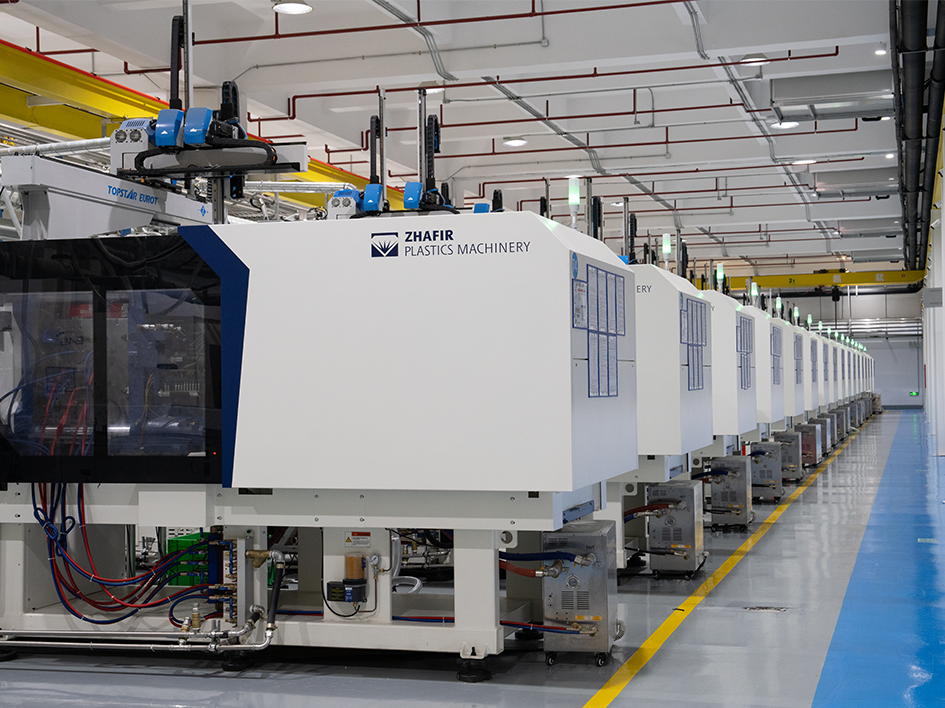

Selection Criteria for an Overmolding Manufacturer

Not every injection molding shop has the capability to handle complex overmolding projects. Choosing a partner requires a deep dive into their technical history and equipment list.

Start by verifying the press tonnage and the types of machines available. If the project requires millions of parts, a manufacturer with multi-shot (2K) machines will be more cost-effective than a shop using manual transfers. Ask for a material compatibility study and look for in-house design assistance. A good manufacturer will suggest changes to the blueprint to improve the success of the bond. Finally, check their quality certifications. Industries like medical or automotive require strict adherence to international standards to guarantee that every part meets the same rigorous specifications.

Frequently Asked Questions

Q1: Will You Be Using Insert molding or Multi-Shot molding?

The decision depends on the budget and the volume of the project. If the goal is to produce a few thousand units, insert molding with manual transfers keeps tooling costs low. For high-volume consumer goods, multi-shot molding is the standard choice despite the higher initial investment in machinery.

Q2: What Substrate Material Is Best for TPE Bonding?

ABS and Polycarbonate are the gold standards for TPE bonding. They offer excellent chemical affinity, allowing for a strong "melt-bond" without the need for mechanical traps. If using Nylon, confirm that the TPE grade is specifically formulated for that resin, as standard grades may struggle to adhere.

Q3: How Is the Bond Strength Tested in Overmoulded Parts?

Factories use "peel tests" and "pull tests" to measure the force required to separate the materials. In a successful bond, the material itself should tear before the bond interface fails. This confirms that the chemical or mechanical connection is stronger than the polymer resins themselves.

Q4: Is Overmolding More Expensive than Standard Injection molding?

The upfront cost for the moulds is higher because two separate cavities or complex rotating tools are required. However, the total cost of ownership is often lower. By removing secondary assembly steps and reducing the weight of the parts, the process saves money over the long term.

Q5: Can You Overmould Silicone onto Rigid Plastics?

Yes, though it is more difficult than working with TPE. Silicone requires high heat to cure, which can melt many standard plastics. Specialist materials like PPA or high-temp Nylon are usually required as the substrate. Alternatively, mechanical interlocks are used to hold the silicone in place if a chemical bond is not possible.

Master Your Production with Strategic Overmolding

The choice to use the method transforms a basic component into a sophisticated, high-performance product. Through careful material selection and rigorous design for manufacturing, companies can achieve superior ergonomics and durability. Partnering with an experienced manufacturer guarantees that technical challenges like delamination or flash remain under control. Use these insights to refine the next product cycle, reducing assembly costs while delivering a premium experience to the end user. Focus on the bond, and the quality of the finished part will follow.
