Optimizing Multi-Cavity Injection Mold Design for Global Production Scaling

When you're running high-volume production across multiple regions, the decisions you make at the tooling stage have long-term consequences. Multi-cavity injection molds can dramatically improve output efficiency, but only when they're designed and sourced correctly. This article looks at the key technical, production, and supplier considerations in high-cavitation mold design projects.

Why Are High-Cavitation Multi-Cavity Mold Projects So Technically Demanding?

Consistency Gets Harder as Cavity Count Increases

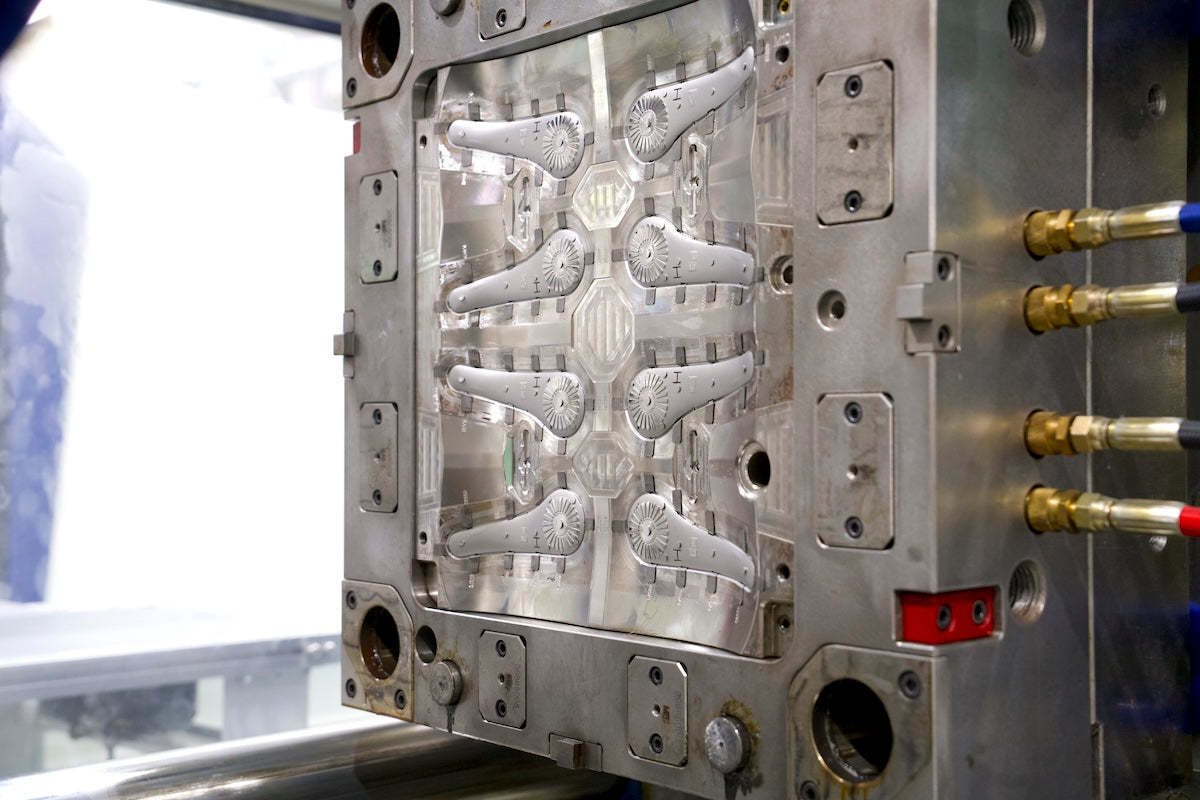

A single cavity mold means managing only one filling zone, one cooling system, and one ejection cycle. But a 32 cavity mold means managing all of those systems at once and making sure they're all uniform within each cavity.

Small inconsistencies add up quickly. The same small flow discrepancy that would go unnoticed in a 4 cavity mold becomes a significant deviation in a 32 cavity mold. The same temperature variation that wouldn't even register in a 4 cavity mold makes perfectly uniform pieces that don't pass inspection.

Common Technical Risks to Address Early

These are the failure modes worth addressing before tooling begins, not after:

None of these are easy to fix post-tooling. Catching them at the design stage is significantly cheaper than addressing them after the mold is built.

How to Achieve Balanced Flow in Multi-Cavity Injection Molding

Geometrically Balanced Runner Design

Real geometric balance means identical lengths and cross-sectional areas of each channel from the sprue up to the gate location. The perfect balance relies on natural design: the melt flows to each cavity simultaneously with the same pressure behind it.

Artificial balance is possible but less stable, sensitive to viscosity changes, and process variation. Naturally balanced runners tend to deliver better consistency and reliability in high-cavitation tools.

Hot Runner System Design

The majority of high-cavitation molds use hot runners. There are three important considerations regarding hot runners:

• Manifold heating zones should be individually controlled so adjustments to one zone don't affect the rest of the tool.
• Gate tip selection, thermal, valve, or open, depends on the resin and part geometry. There's no universal best option; it has to match the application.
• Pressure drop uniformity across flow channels should stay within roughly plus or minus 5%. Deviations beyond that indicate a design issue that needs to be resolved before machining starts.

Mold Flow Simulation Before Tooling Begins

Running simulation software, Moldex3D and Autodesk Moldflow are the two dominant platforms, before any machining starts is not optional on a high-cavitation project. It identifies fill imbalance, weld line locations, and air traps while they're still inexpensive to fix.

It's also a useful supplier filter: a toolmaker who provides documented simulation reports during design review is operating at a fundamentally different level than one relying on experience alone.

Why Does Thermal Uniformity Matter So Much in High-Cavitation Tools?

Cooling accounts for roughly 60 to 70% of total cycle time in most injection molding applications. In a multi-cavity mold, uneven cooling creates dimensional variation between cavities that process adjustments alone can't fix.

Conformal Cooling vs. Conventional Straight-Drilled Channels

Conformal cooling is more expensive upfront, but for complex parts or high-cavitation tools with tight dimensional tolerances, the cycle time and consistency gains typically justify the investment.

Cooling Circuit Zoning Design

A single cooling circuit servicing the entire mold is rarely adequate for high-cavitation tools. Proper zoning means:

• Separating core-side and cavity-side cooling independently.
• Further subdividing by position, center cavities and edge cavities carry different heat loads and need different treatment.
• Specifying mold temperature controllers to match each zone's actual heat load, not selected generically.

Thermal Monitoring and Real-Time Adjustment

Thermal imaging during sampling runs catches hot spots that simulation may not have fully predicted. Pairing thermal data with cavity pressure sensors gives a clearer picture of what's happening inside the tool during live production, and allows targeted corrections to a specific zone without rebalancing the entire system.

How Do High-Volume Multi-Cavity Molds Support Global Production?

Regional Tooling Configuration Strategies

For brands distributing across multiple regions simultaneously, some manufacturers run duplicate multi-cavity tools in parallel across regional production hubs. This reduces logistics costs and regional lead times, but requires strict specification alignment so parts from different tools are dimensionally interchangeable.

Cycle Time and Capacity Planning

A straightforward example: a 32-cavity tool running a 12-second cycle produces roughly 9,600 parts per hour under ideal conditions. Real output is lower once you factor in uptime, scrap rate, and quality hold times.

Planning around realistic OEE figures, typically 75 to 85% for well-managed operations, gives more accurate capacity projections than using theoretical maximums. That buffer matters when you're committing to delivery schedules.

Data Traceability and Process Control in High-Volume Production

Global supply chains, especially in medical and automotive, require more than just consistent output. What's typically required:

• SPC on critical dimensions to catch process drift before it affects a full run.
• Cavity-level data tracking where customer quality plans require it.
• Lot traceability documentation for global distribution and regulatory compliance.

This isn't just a compliance requirement, it's what allows you to isolate and correct problems quickly when they do occur.

How Should You Evaluate Multi-Cavity Mold Suppliers for Global Projects?

Is China Sourcing the Right Fit for Your Program?

For most high-volume programs, yes, but supplier selection matters more than geography. Here's how the main sourcing regions compare:

China offers a real cost advantage, but the variance in supplier quality is wider than in Germany or the US, which makes qualification more important, not less.

Key Supplier Evaluation Criteria

Here's what to verify before committing to a tooling partner:

• Portfolio review, confirm they've built tools at your target cavity count and part complexity, not just general injection molding experience.
• Documented mold flow analysis, request this as part of the design review, not after tooling is underway.
• Steel grade specification, especially for tools expected to run over 1 million shots.
• FAI protocol, confirm sample approval requirements are contractually defined before production tools ship.

Balancing Cost, Lead Time, and Quality

High-cavitation molds are exactly where the cheapest-quote approach fails most expensively. Tooling corrections after a 32 or 64-cavity mold is built cost far more than getting the design right upfront. Structured cost optimization, right supplier, right steel, right FAI process, delivers savings. Unstructured cost-cutting on complex tooling rarely does.

Find the Right Partner for Your Multi-Cavity Injection Mold Program

The decisions you make during mold design are the ones that stick with you. How the runners are laid out, what hot runner system you go with, how cooling is set up, what steel you choose. The best approach is always the same: run your simulations before cutting steel, put as much thought into cooling as you do into the cavity itself, and make sure every design choice is backed by real data.

That's how we've always done things at WEILAN MFG. We started as a small molding shop back in 2011, and over the past 15 years we've grown by keeping things simple: be upfront with our clients, do what we say we're going to do, and make sure the work holds up in production. If you've got a multi cavity project coming up and want to work with people who take it as seriously as you do, we'd be happy to chat.

Multi-Cavity Injection Mold FAQs

Q1: What is the difference between a family mold and a multi-cavity mold?

A family mold is designed to produce several kinds of parts simultaneously in one injection cycle. It may produce a set of matched parts, such as a lid and a base. The main problem is the difficulty in balancing and optimizing such molds; multi-cavity molds, in contrast, allow producing the same component several times in one injection cycle. A family mold may be preferable if a matched set of parts is needed; however, a high-output production is not planned.

Q2: When does a single-cavity mold make more sense than a multi-cavity tool?

Single-cavity tools are usually preferable for programs of 50k-100k units per year or lower volumes. A single-cavity mold may also be chosen for producing highly complicated parts when balancing is too hard. Another case is when the required volume is still unclear at a project stage.

Q3: How do manufacturers verify that all cavities produce consistent parts?

Each cavity is measured and checked individually during the first article testing procedure. Then, special statistical process control procedures are performed to ensure that parts coming from various cavities have no dimensional deviations.

Q4: Which resin types are hardest to run in high-cavitation molds?

All filled grades, especially containing minerals, glass, or flame-retardants, cause extra fast wear of gates and cavity surfaces, and what is more important, they are especially sensitive to any imbalance of runners. In addition, many engineering plastics such as POM, PEEK, and some nylon grades require very tight temperature control.

Q5: Can a damaged cavity be repaired without replacing the whole tool?

Certainly. As a rule, all cavities are mounted in the frame of a multi-cavity mold separately; therefore, it is easy to change just the damaged insert rather than the whole mold. And steel grade selection becomes particularly significant since it determines how long cavities are usable. Also, solid blocks do not allow this option. Their repairs are very costly and problematic.

Q6: What certifications should a supplier hold for medical or automotive applications?

ISO 13485 is required for medical applications. In addition, the supplier must have a controlled environment or clean room molding capabilities. The IATF 16949 standard is used by automotive companies. These certifications do not guarantee that mold quality will be the best, but they are an indication that a supplier uses standardized processes.
