How Much Does Plastic Injection Molding Cost?

When starting a new manufacturing project, the first question most people ask is about the price. Injection molding is a powerful method for making thousands of identical plastic parts, but the entry cost can seem high at first glance. The total cost is not a single number. It is a combination of a large upfront payment for a metal mold and a much smaller cost for every part produced. Understanding how these two figures interact is the most important part of planning a successful and profitable product launch.

The Quick Answer: The CapEx vs. OpEx Pricing Model

For engineering and purchasing teams, the cost of injection molding is best understood as a two-part equation: Total Cost = Tooling (CapEx) + [Unit Cost (OpEx) × Production Volume]. While injection molding requires a significant initial capital investment, it can offer one of the lowest per-unit costs for high-volume plastic part production.

1. The CapEx: Tooling and Mold Construction

Your initial investment is fixed and primarily driven by the required durability and complexity of the mold.

• Production Volume (SPI Class): High-volume runs require hardened steel for longevity, while low-volume or bridge tooling can utilize softer, less expensive aluminum.
• Cavitation Strategy: Multi-cavity molds increase upfront CapEx but drastically reduce machine time and per-part costs during production.
• Geometrical Complexity: Features requiring secondary mold mechanics—such as side-actions, lifters for undercuts, or unscrewing mechanisms for internal threads—exponentially increase tooling costs.

2. The OpEx: Variable Production Costs

Your per-part cost is the operational expense applied to every unit produced on the factory floor.

• Material Science: Resin costs are calculated by weight and volume. Commodity polymers (PP, PE) keep material costs low, while engineering-grade or specialty resins (PEEK, Polycarbonate) carry a premium.
• Cycle Time: In manufacturing, time is money. Parts with thick walls or sub-optimal cooling channels increase cycle times, which ties up machine capacity and increases the hourly rate applied to your parts.
• Economies of Scale: Because the mold is a fixed sunk cost, the true unit price drops exponentially as order volume increases. A $50,000 tool amortized over 10,000 parts adds $5.00 to the unit cost; over 1,000,000 parts, it adds only $0.05.

Calculating Your Initial Investment: Major Factors Influencing Mold and Tooling Costs

The mold is the single largest upfront expense in the injection molding process. It requires high-precision engineering and specialized materials to ensure that every part produced is identical. Before a single unit rolls off the assembly line, a metal cavity must be meticulously crafted to match your design. Understanding the following four factors will help you navigate these initial capital requirements.

1. The Impact of Tooling Materials on Price

The metal used to build your mold dictates both the initial invoice and the tool's total lifespan. The material must withstand extreme pressure and constant thermal cycling without deforming.

• Aluminum: Ideal for prototyping or short runs. It is faster to machine and offers excellent heat dissipation (shorter cycle times), but it is soft and wears out quickly when used with abrasive resins.
• P20 Steel: The "workhorse" of the industry. This pre-hardened steel is used for standard production runs (up to 300,000 cycles), offering a balanced middle ground between cost and durability.
• Hardened Steel: The premium choice for high-volume production. It requires specialized heat treatment, which increases the price, but it can endure millions of cycles, making the cost-per-part negligible over time.

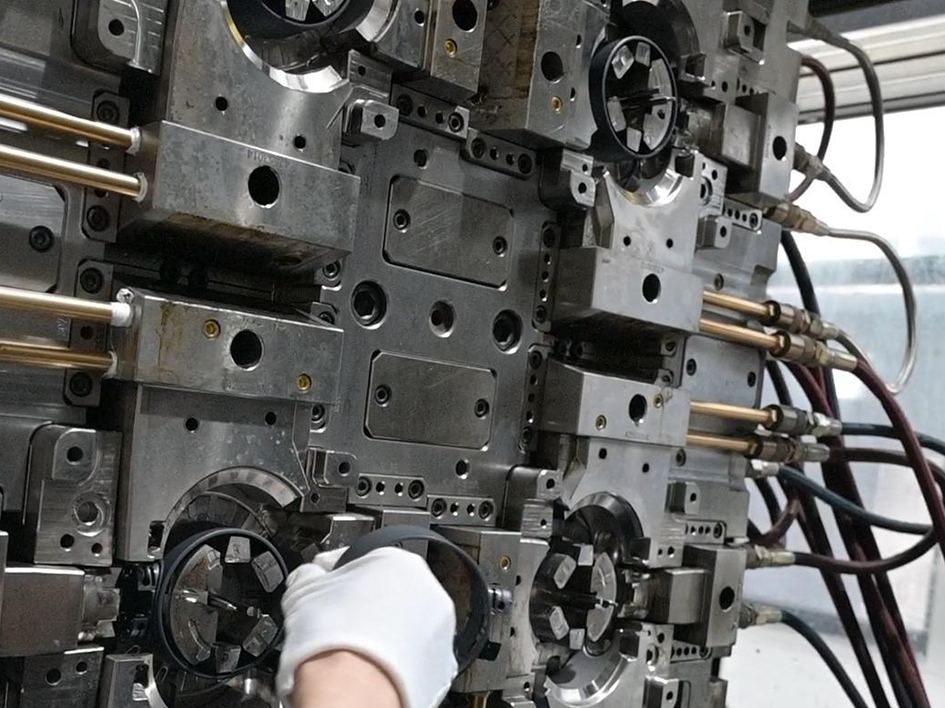

2. Cavitation and Its Correlation to Price

Cavitation refers to the number of "impressions" or parts the mold produces in a single machine cycle.

• Single-Cavity Molds: These are the least expensive to build but result in a higher per-part cost because the machine only produces one item per cycle.
• Multi-Cavity Molds: By creating 2, 8, or even 64 cavities in one mold base, the upfront CapEx increases significantly. However, because you produce more parts in the same amount of "machine time," the unit price can drop by over 70%.
• Family Molds: These allow different parts of the same assembly to be molded simultaneously, saving you from investing in multiple separate mold bases.

3. Design Complexity and Mold Features

A simple "open and shut" mold is the most budget-friendly. However, complex part geometries require additional mechanical features that drive up the price:

• Side-Actions (Slides): Necessary for parts with holes or slots on the sides that would otherwise prevent the part from being ejected.
• Undercuts and Lifters: Any feature that "traps" the part in the mold requires moving components (lifters) to release it safely.
• Internal Threads: If your part needs screw threads, the mold must include complex unscrewing mechanisms or collapsing cores, which can add thousands of dollars to the build cost.

4. Evaluating and Selecting the Right Mold (SPI Class)

To avoid overpaying for durability you don't need, the industry uses the SPI (Society of the Plastics Industry)classification system. This allows you to choose a tool based on your projected production volume.

SPI Class	Expected Life (Cycles)	Common Materials	Typical Investment
Class 101	Over 1,000,000	Hardened Tool Steel	$50,000 - $100,000+
Class 102	Up to 1,000,000	Hardened Tool Steel	$25,000 - $50,000
Class 103	Up to 500,000	Pre-hardened Steel (P20)	$10,000 - $25,000
Class 104	Up to 100,000	Mild Steel or Aluminum	$5,000 - $15,000
Class 105	Up to 500	Aluminum or Epoxy	$1,500 - $5,000

If you are in the "Bridge Tooling" phase (testing the market), a Class 104 aluminum mold is often the most cost-effective way to transition from a prototype to mass production without the six-figure price tag of a Class 101 tool.

Breaking Down the Variable Production Costs for Individual Parts

Once the mold is constructed, the focus shifts to the production phase. This is where you see the "per-part" cost, which includes the raw plastic, machine time, and factory labor.

Resin and Material Selection Prices

The type of plastic resin you choose is one of the most significant factors in your unit price. Material costs are usually calculated by weight, so the volume of your part matters as much as the type of plastic.

• Commodity Plastics: Polypropylene (PP) and Polyethylene (PE) are widely available and very affordable. They are perfect for household goods or simple containers.
• Engineering Plastics: ABS, Polycarbonate (PC), and Nylon offer better strength and heat resistance but cost more per pound.
• Specialty Plastics: High-performance resins like PEEK or Ultem can cost ten times more than standard resins and are used primarily in medical or aerospace fields.

Choosing a material that meets your part’s physical requirements without over-specifying is a key strategy for cost control.

Cycle Time Optimization and Efficiency

In the world of manufacturing, every second of machine time has a price. The cycle time is the total duration from the moment the mold closes to the moment the finished part is ejected. Most of this time is spent waiting for the plastic to cool and solidify. If a part has thick walls, it takes longer to cool, which slows down production. A machine that produces 100 parts an hour will lead to a higher unit price than one that produces 200 parts an hour. Reducing wall thickness and optimizing the cooling channels in the mold are the most effective ways to lower variable production costs.

Machine Rates and Overhead Expenses

The size of the injection molding machine needed depends on the tonnage required to keep the mold closed under high pressure. According to the U.S. Bureau of Labor Statistics, manufacturing labor and equipment maintenance costs vary by region, affecting the final machine rate.

Machine Size	Typical Use Case	Hourly Rate (Est.)
50 - 150 Tons	Small gears, phone cases	$30 - $50
200 - 500 Tons	Laptops, medium containers	$60 - $100
600+ Tons	Car bumpers, large crates	$120+

Making sure your part is designed to run on the smallest possible machine can lead to substantial savings over time.

Scrap Rates and Quality Control Measures

No manufacturing process is perfect, and a small percentage of parts will always be rejected due to defects like short shots, warping, or surface blemishes. Most production quotes include a small percentage for scrap. Additionally, if your parts require strict tolerances or medical-grade cleanliness, the cost of quality control will increase. This includes the labor for manual inspections, the use of specialized measuring equipment, and the documentation required for compliance. High-precision industries often have higher unit costs because of these necessary safety and quality checks.

Critical Factors Influencing Total Manufacturing Expenses

Beyond the mold and the plastic, there are several physical and logistical details that will determine the final total on your invoice. These factors often separate simple projects from complex ones.

Part Size and Geometric Volume

The physical volume of a part has a direct relationship with its cost. Larger parts naturally use more plastic resin, which increases the material cost. They also require larger molds and bigger injection molding machines. Furthermore, large parts often take longer to cool down because they hold more heat within their thicker or more expansive surfaces. A tiny plastic component for an electronic device might cost less than ten cents, while a large automotive bumper or a shipping crate can cost several dollars per piece in material and machine time alone.

Surface Finish and Aesthetic Requirements

The final appearance of your product adds another layer of cost to the mold construction. The more labor required to finish the mold surface, the higher the price.

• SPI Finish B or C: Standard matte or semi-gloss finishes that are cost-effective.
• SPI Finish A: High-gloss, mirror finishes that require hours of hand-polishing.
• Texturing: Adding patterns like leather grain or heavy stippling through chemical etching.
• Bead Blasting: Provides a uniform, non-reflective finish that hides minor surface imperfections.

Secondary Operations and Assembly

The parts made by injection molding may sometimes require additional operations to get ready for shipping and use. These include painting, laser marking, or even decorating them with a company logo through pad printing. In addition, some items may need metal inserts placed inside the mold during the injection process or ultrasonic welding to assemble two parts of an item. The more features that can be integrated into the original mold design, the lower the overall cost will be, because secondary operations involve additional expenses for personnel and equipment.

Order Volume and Economies of Scale

Injection molding is a process that rewards high-volume production. Because the cost of the mold is fixed, the more parts you make, the lower the price per part becomes. For example, if a mold costs $20,000 and you only make 2,000 parts, each part essentially costs $10 just to pay for the tool. If you make 200,000 parts, that tooling cost drops to only 10 cents per part. This is the concept of economies of scale. When you are comparing quotes, always look at how the unit price decreases as the order quantity increases.

Practical Strategies for Reducing Injection Molding Costs

You do not have to settle for the first high quote you receive for your project. There are several professional methods used to trim the budget without sacrificing the quality of your product.

Implementing Design for Manufacturing Principles

Design for Manufacturing, or DFM, is the practice of designing parts so they are as easy and cheap to produce as possible. Following educational engineering guides on part design can save thousands in production costs.

1. Maintain Uniform Walls: Prevents warping and speeds up cooling.
2. Add Draft Angles: Allows parts to slide out of the mold without sticking.
3. Use Ribs Instead of Thick Walls: Provides strength without adding unnecessary plastic or cooling time.
4. Simplify Geometry: Avoid undercuts and side-actions whenever possible.

The Benefits of Using Family Molds

If your product is made up of several different plastic parts, you may be able to use a family mold. This allows you to put multiple different part designs into a single mold base. As long as the parts are made from the same material and have similar sizes, you can produce a complete set of components with every single cycle of the machine. This is a great way for startups and small businesses to save on tooling costs because it avoids the need to build a separate mold for every individual piece of the assembly.

Material Substitution and Savings

Sometimes, a high-cost engineering plastic is not actually required for a part to perform its job well. By analyzing the stresses and temperatures the part will face, you might find that a cheaper commodity plastic with a glass-fiber filler can provide the same strength. Another option is to use regrind, which is recycled plastic from previous production runs. Many manufacturers allow for a percentage of regrind to be mixed with virgin plastic, which can lower material costs without significantly affecting the final product's physical properties.

Transitioning From Prototyping to Production

It is often wise to start with a cheaper prototyping method before investing in a permanent steel mold. 3D printing or urethane casting can be used to test the fit and function of a part for a few hundred dollars. Once the design is finalized, you might move to a bridge mold made of aluminum. This allows you to start selling the product and earning revenue while a high-volume, multi-cavity steel tool is being built. This staged approach reduces your financial risk and ensures that any design flaws are caught before you spend money on expensive permanent tooling.

Choosing a Reliable Manufacturing Partner for Success

Selecting a manufacturing partner is about much more than just finding the lowest price. A good partner will work with you as a consultant, helping you find efficiencies and avoid common mistakes that lead to delays.

You should look for a manufacturer that provides a comprehensive DFM report before any work begins. This report should highlight potential issues such as areas where the plastic might not fill properly or where sink marks might appear. Addressing these problems during the design phase is much cheaper than fixing a finished mold. It is also important to choose a facility with a recognized quality management system, such as ISO 9001 certification. This certification proves that the factory follows consistent processes, which results in fewer defective parts and more reliable shipping schedules.

Transparency is another vital trait in a partner. A professional quote should be broken down into clear categories, including the cost of the mold, the price per unit, the setup fees, and any packaging or shipping costs. This level of detail allows you to see exactly where your money is going and helps you make informed decisions about how to optimize your manufacturing budget for the long term.

FAQs About Injection Molding Costs

Q1: Why Is Injection Molding So Expensive?

The primary expense comes from the high level of skill and precision required to create the mold. Molds are made from specialty metals and must be machined to incredibly tight tolerances, often thinner than a human hair. The process uses expensive equipment like CNC mills and Electrical Discharge Machines (EDM). Additionally, the injection molding machines themselves represent a significant capital investment and require high amounts of energy and specialized labor to operate safely and efficiently.

Q2: How Much Does a Plastic Injection Mold Tool Cost?

A small, simple aluminum mold for prototypes usually costs between $1,500 and $5,000. For a standard production part with average complexity, you can expect to pay between $10,000 and $25,000. If your project requires high production speeds and millions of parts, a multi-cavity tool made of hardened steel can cost $50,000 to over $100,000. The total price depends on the size of the part, the complexity of the design, and how many parts the mold can make at once.

Q3: Is Injection Molding Cheaper Than 3D Printing?

The comparison depends on your order volume. Injection molding becomes significantly more cost-effective beyond 500–1,000 units. While the price per item continues to drop as the quantity grows, the cost of producing a 3D-printed part remains constant. However, for relatively small orders of less than 100 parts, 3D printing is definitely cheaper since it does not involve any tooling costs.

Q4: What Is the Cheapest Material for Injection Molding?

As mentioned above, PP and PE are the least expensive materials used in injection molding as they are commodity plastics. These polymers are manufactured on a large scale and can be found in everything from food containers to automotive parts. Despite being inexpensive, they offer good durability and chemical resistance, making them suitable for a wide range of applications.

Conclusion

Injection molding requires a large initial investment but is by far the best way to produce high-quality plastic parts in bulk. Knowledge of the factors affecting mold pricing and per-unit costs will enable you to make sound judgments for the sake of your profitability. Manufacturing success lies in finding the right balance between capital expenses and the benefits gained through economies of scale. Once you are ready, do not hesitate to contact an experienced manufacturer to discuss your plans at the earliest stage of your project.
