Mastering Insert Molding Services for Secure Sensor Encapsulation

Why Insert Molding Is Important in Sensor Manufacturing

Today, sensors have become smaller, lighter, and constantly exposed to heat, vibration, dust, water, and chemicals, thus creating extreme pressure on the outer layer of the sensor or the internal circuit components.

The Precision Challenge in Sensor Encapsulation

A sensor looks very simple from the outside, yet the inside is packed with fragile electronic parts. A tiny shift in a terminal, a micro-crack near a solder joint, or a very small leak path can cause unstable signals, internal corrosion, or early field failure. In automotive engines, industrial manufacturing, and consumer wearables, that kind of failure quickly escalates. It leads to expensive warranty claims, assembly line stoppages, and a damaged brand reputation.

This is exactly why electronic encapsulation demands so much attention during the design phase. The outer package must protect the sensitive internal elements from moisture, dust, vibration, hard impacts, and thermal cycling. At the same time, it must keep the electrical path perfectly stable. In many modern sensor designs, the plastic housing also has to hold exact dimensions so that mating connectors, mounting clips, and rubber seals fit properly on the first try.

Why Insert Molding has Become a Preferred Packaging Method for Sensors

Low pressure molding and insert molding are often used in the electronics industry because they safely encapsulate critical assemblies and, at the same time, make the outer case. Low pressure injection molding also reduces processing cycle time by a significant degree when compared to conventional liquid potting systems. The parts are removed from the mold and are immediately ready for use, rather than waiting on a rack for a chemical cure cycle to be completed.

Feature	Low-Pressure Insert Molding	Traditional Liquid Potting
Cycle Time	15 to 60 seconds per cycle	Minutes to several hours for chemical curing
Housing	Molded resin forms the final outer shell	Requires a separate pre-made plastic or metal box
Weight & Size	Lightweight, conformal coverage	Heavy, solid block of cured resin
Workflow	Insert component, inject plastic, test	Mix resin, pour into shell, wait to cure

From the point of view of sensor manufacturing, the change offers the following advantages:

• Small footprint: The end package is extremely tidy and supports the drive for miniaturization of products.
• Environmental sealing: The bond provides good resistance to water and dust ingress if the choice of dimensions and material is well managed.
• Scalability: The process is highly scalable as automation is used to replace labor-intensive manual assembly and subsequent gluing.

Precision Control for Preventing Insert Misalignment

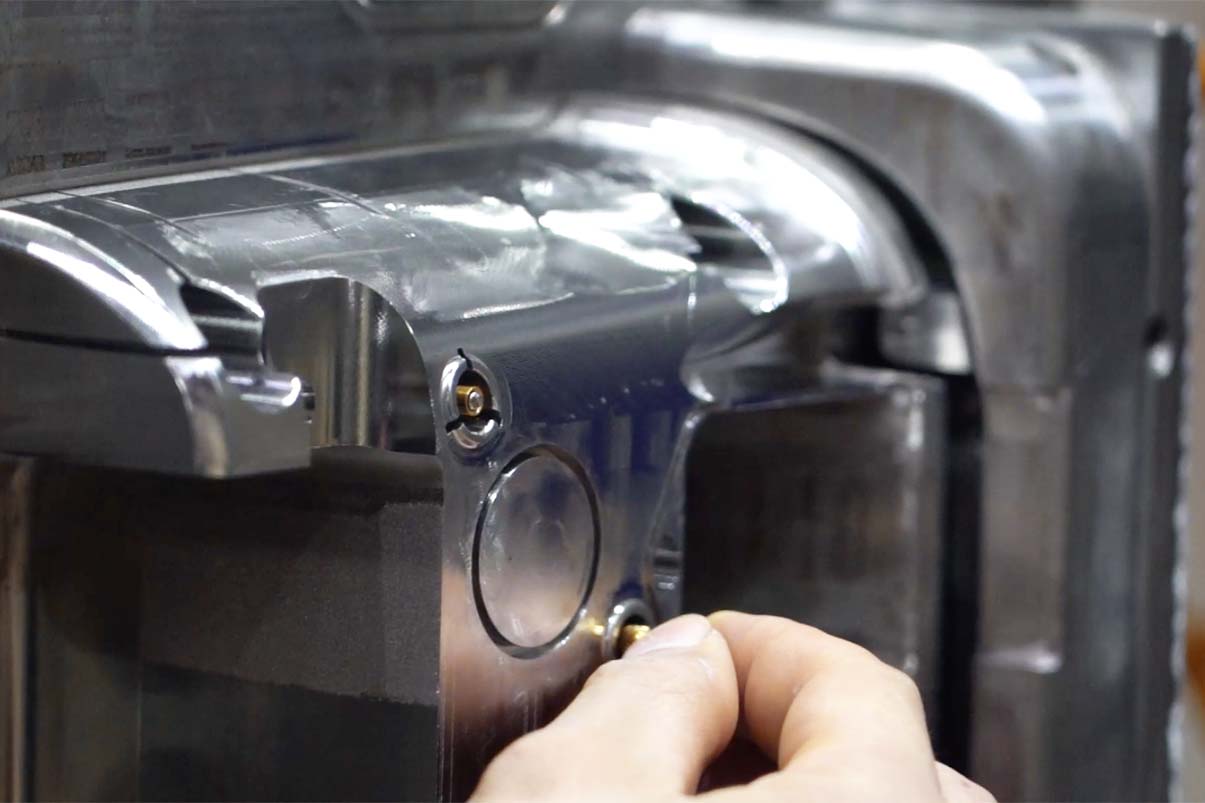

The biggest concern, however, is ensuring that the electronic component is correctly placed within the mold cavity. At this point, the precise component might fail, despite having been well-designed, because of the sensitive nature of the metal pins or the internal boards.

Why Insert Movement Becomes a Serious Sensor Risk

The resin flows into the mold at an extremely fast rate, which then generates an immense force. This must, therefore, be countered to ensure that the precise placement of the terminal, the contact pin, the small PCB, or the component is achieved correctly, as if this is not achieved correctly, then when the molten plastic is injected into the mold, the component will tilt, float, or rotate and will thus be totally useless.

This risk is even more complicated when the sensor component is taken into account, as it is very small. At this point, the precise component might fail, as the offset, despite being just a fraction of a millimeter, might be too great, thus preventing the wire connector from making the correct connection or exposing the bare metal or the soldered region to too much stress, depending on the sensitivity. The offset might also interfere with the air space surrounding the sensor, thus ruining the entire calibration of the sensor.

How Automated Loading Contributes to Repeatability

One of the main reasons why the current insert molding techniques for electronics have a high level of repeatability is the use of automated loading. This robotic machine ensures that the inserts are placed in the mold cavity in the exact same position every time the mold closes. This reduces the level of randomness in the placement of the inserts, especially when they are placed manually.

In the case of high-volume sensor molding, the use of automation also ensures that the inserts are clean. The handling of the inserts is greatly reduced, thus minimizing the amount of oil, dirt, and handling damage on the terminals. Clean metal surfaces have a high probability of bonding well with the plastics; therefore, the quality of the bond is enhanced.

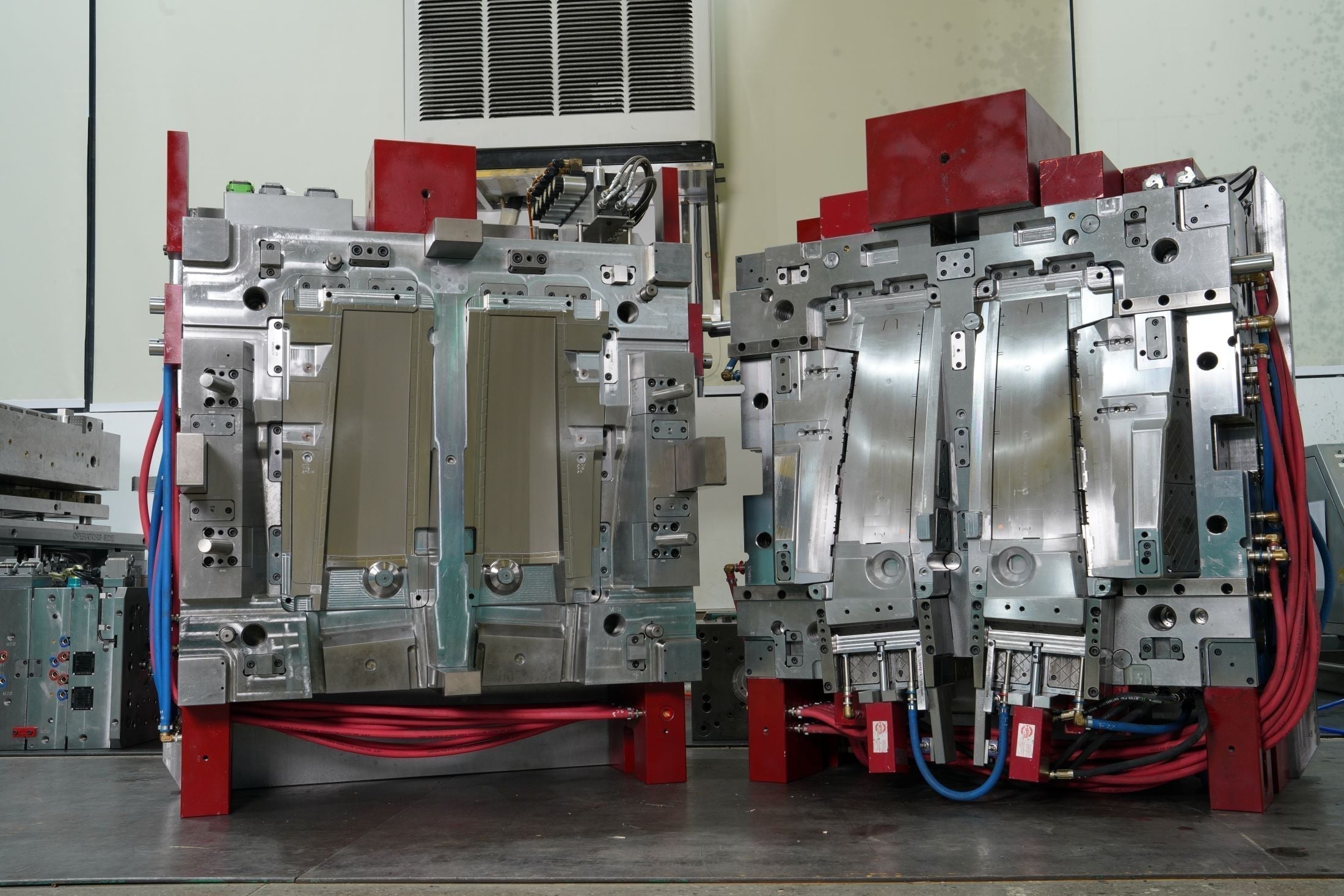

Tooling Features That Keep Inserts in Place

The tool design really does a lot of the work to ensure that everything is properly positioned. That is, a well-designed tool places the insert properly without applying any mechanical stress that might cause a thin piece of metal to distort or a ceramic piece to crack. Common tooling features include:

• Location pins to hold the insert's holes and positioning features.
• Tight support ribs to safely hold long or slender terminals.
• Vacuum assistance to properly hold flat components down against the steel.
• Tight shut-off areas to ensure that plastic components are not allowed to flash onto functional metal contact areas.

This is why investing in the quality of a mold manufacturer is one of the top concerns for a sensor program. If a toolmaker is good at their job, they are designing the mold around the true weak points of the assembly. That means that if a terminal is long and slender, there are support ribs near the tip of the terminal. If there are contact pads that must be kept absolutely clean, there must be a tight shut-off between the plastic and the functional metal contact areas. Process capability begins with a well-designed tool long before the press is ever run.

Mastering Melt Pressure to Protect Fragile Electronics

Component position is merely the first step. Melt pressure requires strict management, since a perfectly placed electronic insert will still take severe damage from aggressive resin flow and excessive force.

Why High Injection Pressure Can Damage Sensor Assemblies

Traditional injection molding techniques involve the use of extremely high pressures, which can reach as high as 2,000 bar. Such extreme pressures pose tremendous risks for the sensitive electronics and the miniscule sensor parts. Forcing thick plastic into a mold under such extreme pressure will bend terminal pins, interfere with precise solder joints, break microscopic wire bonds, and force the resin into areas it should not be in.

Damage caused by pressure is not always immediately apparent. A part may look good during a brief visual inspection on the production floor and fail months down the road. Vibration, thermal, and/or moisture stress will ultimately degrade the compromised internal joints. Therefore, the process settings should not be optimized for fast mold filling and maximum production rates. In sensor encapsulation, the machine settings must first consider the internal electrical functions.

Why Low Pressure Molding is a Good Fit for Sensitive Sensor Encapsulation

Low Pressure Molding, or abbreviated to LPM, has a much lower injection pressure. It has a range of 1.5 to 40 bar according to electronics encapsulation manufacturers. It is a safe method to ensure that the components are not damaged while also providing a secure encapsulation of the wires and terminals.

In the case of sensors, it is a safe method for encapsulation. It is a better method than a traditional method that has a chance of damaging the components. It reduces the chances of damaging the components by providing a slow flow of the encapsulant material. It also provides a secure encapsulation of irregularly shaped components such as wire ends, terminal clusters, and compact board assemblies without the need for a large outer case.

How Multi-Stage Injection Profiling Improves Stability

Pressure control involves much more than picking a single number on a screen. Highly skilled molders shape the filling process in multiple distinct stages. They carefully adjust the injection speed, the specific transfer point, the packing pressure, and the hold time so the molten resin enters the cavity in a controlled, steady manner rather than hitting the electronic insert like a violent wave.

This multi-stage approach is highly useful in sensor parts featuring thin walls and mixed geometric sections. A slower first stage reduces the direct physical force hitting the insert. A well-timed switchover to pack pressure helps finish the cavity fill without over-packing the plastic. Packing the tool too hard raises residual stress, forces plastic flash near shut-offs, and damages delicate interfaces. A stable injection profile protects the part while delivering full, repeatable encapsulation.

Thermal Management for Eliminating Internal Stress Cracks

Pressure management is only half of the reliability equation; the other half is equally important: temperature management. This is because the expansion and contraction of metals and plastics are vastly different when cooled or cooled rapidly.

Why Thermal Expansion Mismatch Causes Cracks

In virtually all cases of internal stress cracks in these types of devices, a mismatch in the rate of thermal expansion was the cause of the problem. Metals, silicon chips, ceramics, and plastics have vastly different rates of expansion and contraction when cooled or cooled rapidly. When the plastics are molded, they are at a much higher temperature than the metal insert, and then they are cooled together in a single bonded piece. When the rate of contraction of these plastics and metals is severely mismatched, a tremendous amount of residual stress is built up within the resulting encapsulated piece.

This stress remains invisible for a while. The outside of the device may appear clean and unblemished; however, there is a tremendous amount of strain built up within the piece at the sharp edges of the case, the injection gates, thin walls of the case, or even the edges of the metal insert. Eventually, after much vibration, fluid immersion, or many cycles of heat and cold in the field, cracks appear in the case or even a complete failure of the seal or a failure of the calibration of the sensor. In a real-world application, these delayed cracks are actually a type of thermal stress defect that was initiated within the molding cycle.

Why Insert Preheating Helps Reduce Stress

Preheating metal inserts serves as a highly practical way to reduce the extreme temperature gap between the cold insert and the hot molten resin. A smaller temperature gap slows down the sudden freezing of the plastic skin, improves resin flow around the insert geometry, and sharply lowers the stress concentration that normally forms at the bonding interface.

This preheating step brings huge benefits for sensor parts with thick metal contacts or complex geometric shapes. A thick, cold insert chills the flowing resin too fast in a local area, creating poor knit lines, weak bonding, and trapped mechanical stress. With strict preheat control prior to mold closure, the material fill becomes much more even, making the finished part far less likely to crack later in service.

How Mold Temperature and Cooling Settings Influence Reliability

The mold temperature directly affects resin flow, skin formation, and cooling rates. Increasing mold temperature and tightly controlling it reduces the chances of stress cracks in certain types of resin by allowing the chains to relax more evenly during the cooling cycle.

When it comes to encapsulating sensors, the mold temperature largely depends on the resin types used, the insert material, the wall thickness of the insert, and the entire shape of the insert. If the mold temperature is too low, the resin will solidify too fast and lock in the stresses within the insert. On the contrary, if the mold temperature is too high, it causes a longer cycle time and results in dimensions becoming out of tolerance. The goal is to achieve a balanced condition where the mold temperature is sufficient for a smooth cycle while maintaining sufficient control for efficient production.

Material Selection for High Reliability Sensor Encapsulation

While a process may be completely controlled from a processing point of view, the entire process comes undone when the wrong type of plastic resin is selected. Ultimately, the type of material selected will play a large part in determining how reliable the sensor package will be when exposed to moisture, chemicals, or normal wear and tear.

Polyamides and Hot-Melt Materials for Low-Pressure Molding

Polyamide-based hot-melt materials are the most dominant type of material being used for low-pressure molding within the electronics industry. It is here that the exceptional flow characteristics, adhesion characteristics, and level of protection against moisture or mechanical stress are desired by electronics manufacturers.

The primary reason that polyamide-based hot-melt materials are beneficial for electronics manufacturers is that they are highly friendly during the molding process. These materials are able to encapsulate intricate internal shapes with a fraction of the force that would be required when dealing with conventional engineering materials. Furthermore, a high level of durability is also offered on the external surface. When dealing with intricate sensor modules where small wires and critical geometry changes are prevalent, a huge advantage exists when dealing with this type of softer molding style.

Engineering Thermoplastics for Tough Sensor Environments

For applications at higher temperatures or for highly structural parts, a molder might select a heavy-duty engineering resin such as PBT, PPS, LCP, Polycarbonate Blends, or glass-filled nylons. In any event, the material must be compatible with the thermal, mechanical, and dimensional needs of the end use of the finished product.

In terms of packaging sensors, the engineering team must test the material for a number of rigid requirements:

• Thermal expansion rates versus internal metal inserts.
• Amount of moisture absorption over long periods of time.
• Resistance to chemicals such as automotive fluids or industrial solvents.
• Dimensional stability at high temperature conditions.
• Dielectric strength for electrical applications.
• Flowability of the material into thin wall sections of the sensor.

While a material might look incredibly strong on a data sheet provided by a material supplier, it might not be good at all for a sensor application. For instance, a stiff material with low flow properties demands a huge amount of pressure to inject the material into the thin walls of the sensor, which can crush the internal metal inserts. Materials with high moisture absorption properties change dimensions and destroy dielectric strengths over long periods of time. Resin selection is related to the end use of the sensor and not to the cost per kilogram of the material.

Quality Control for Zero Defect Sensor Packaging

Good designs and materials mean nothing without proof of consistency of performance. Thousands of these sensors need to be available to the end-consumer to be of use to them. This means strict monitoring and testing must be done.

Real-Time Cavity Monitoring in the Process of Insert Molding

The process of insert molding uses real-time monitoring to give the molder instant information regarding what is occurring within the closed mold environment. Advanced pressure sensors and temperature sensors give detailed information regarding the differences in each mold shot. This enables the mold technician to quickly recognize changes in the injection fill, venting issues, issues in the pack zone, and issues in the thermal zone.

The monitoring of the process is essential since most functional issues initiate as process issues. Any abrupt change in the curve of the pressure sensors of the mold indicates a problem with the air vent, a problem with the viscosity of the material used for molding, a problem with the temperature of the barrel, or improper installation of the metal insert. Seeing this small problem on the screen of the machine is infinitely better than waiting for the costly leak test results to be received.

Post-Mold Validation of Sensor Reliability

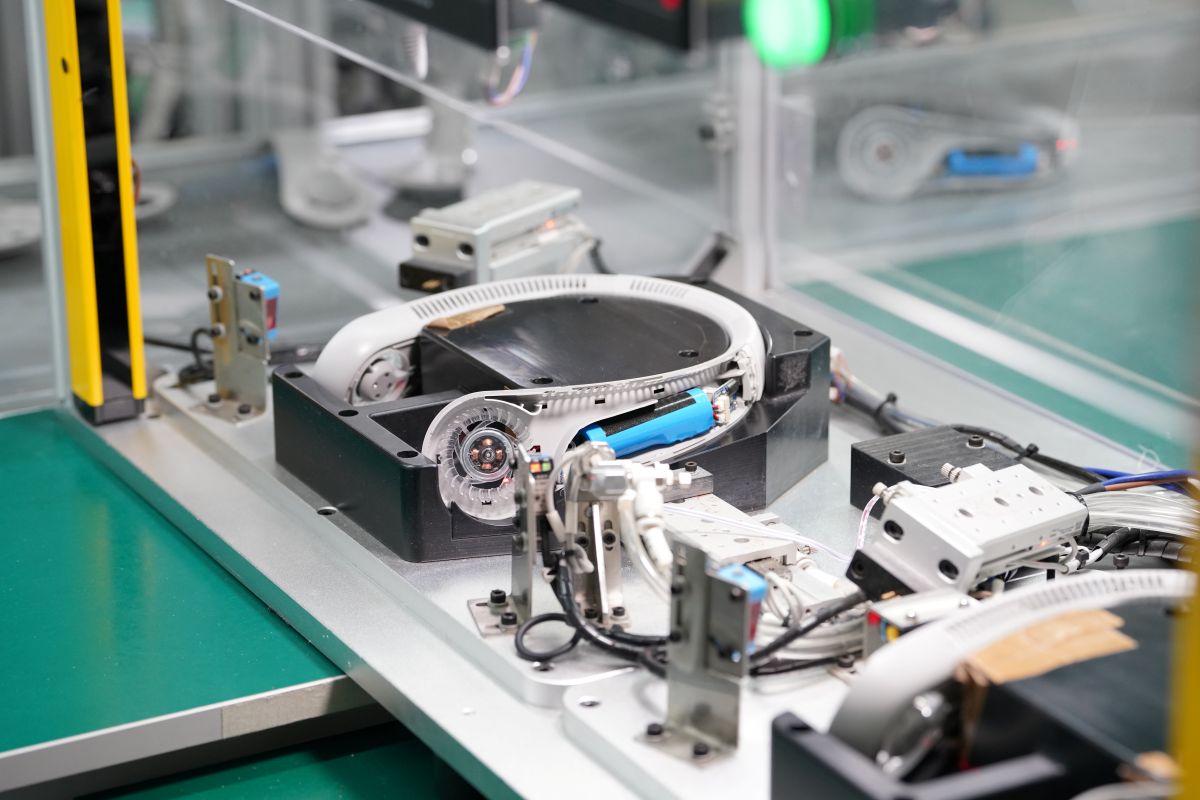

Validation of molded packages is not merely a visual inspection of the package. Leak tests, electrical tests, mechanical pull-out tests, extreme thermal cycling tests, and extreme environment tests are conducted to ensure the reliability of the molded package to protect the insert and function in real-world applications.

For sensor programs, it must directly correlate with the validation process. A pressure sensor going into a hot engine bay must have a vastly different validation process than a wearable device or a sensor going into a room temperature environment. If the final device must contend with extreme temperatures, violent vibration, fluid splashes, and extreme temperature changes, the qualification must take this into account.

Why Early DFM Support Creates a Better Sensor Package

The most successful insert molding projects start very early in the design-for-manufacturing (DFM) process. Tool layout, gates, shut-offs, insert support, plastic material selection, and test planning all have a very large impact on the final quality of the finished sensor package. If the engineering company does not start the mold design very early in the DFM process, the engineering team will have to fight with flash, stress cracks, seal issues, and stability problems once the tool is cut.

For the engineering buyer, this is the reason why working with a company that specializes in precise sensor encapsulations will yield the best results compared to a company that simply makes generic plastic parts. The best mold company will identify potential problems with the structure of the sensor very early in the concept phase. They will have spent many hours reviewing mold-flow analysis software and have created a retention system that works well with the insert.

High-Reliability Insert Molding Services with WEILAN MFG

Working with the right manufacturing partner eliminates the significant risk associated with the encapsulation of electronics. The highly controlled environment guarantees that your sensitive sensor package works flawlessly even in the most extreme physical field environments.

WEILAN MFG offers advanced insert molding solutions. We offer expert DFM services, tight tolerance tooling, and tight process controls, which guarantee zero-defect manufacturing for all production volumes.

FAQs

Q1: What is the role of insert molding in ensuring the absence of moisture in the sensor?

Insert molding plays a significant role in ensuring the absence of moisture in the sensor by eliminating the glued joints, screws, or any mechanical means for moisture intrusion. The molding material encapsulates the terminals or wires in such a manner that the interior of the sensor remains completely sealed against moisture intrusion, thereby satisfying the stringent IP67 or IP68 standards for water resistance.

Q2: Will the heat and pressure of the injection molding process not damage the PCB?

Yes, the heat and pressure of the high-pressure injection molding process will definitely damage the PCB. Insert molding completely eliminates the problem of damaging the PCB by the heat and pressure of the molding process. This is achieved by the low-pressure molding process, in which the pressure applied to the mold is in the range of 1.5 to 40 bar, and the plastic resins have a low temperature, especially designed for encapsulating the PCB.

Q3: What is the reason for the cracks in the molded housing of the sensor in the later part of the production cycle?

The main causes of crack formation in the molded sensor housing, particularly during the later stages of the production cycle, are related to the presence of residual stresses within the mold material. The main causes of this phenomenon are related to large variations in coefficients of expansion, the use of "cold inserts," low mold temperature, and overpacking of mold material during the molding cycle.

Q4: Is insert molding economical for low-volume production runs?

Although tooling costs are high for insert molding, compared to simple "potting box" tooling, the benefits of insert molding become obvious when production volumes are increased, thus reducing labor costs for assembly, curing, and sealing.

Q5: What is the major cause for the formation of plastic "flash" on the electrical contact pins?

The major cause for the formation of "plastic flash" on the electrical contact pins is related to the phenomenon by which the plastic flows out of the mold cavity and comes into contact with the actual metal surface. The major cause of defect formation during the molding cycle is related to poor design of the mold shut-off, worn steel tooling, loose tolerance of inserts, and high pressure during the molding cycle.

Q6: What are the typical dimensional tolerances for insert-molded sensors?

Precision insert molding regularly achieves tolerances of ±0.05 mm to ±0.1 mm, depending on the specific resin. Final part tolerances also heavily depend on the geometric consistency of the pre-made metal insert itself.

Q7: Do I need to clean metal inserts before molding?

Absolutely. Machine oils, stamping fluids, and dust destroy resin-to-metal bonding. Inserts require thorough cleaning. High-reliability applications often demand plasma treatment or liquid adhesion promoters to guarantee a permanent, leak-free environmental seal.
