Precision Mold Manufacturing: How EDM, CMM, and Assembly Verification Protect Tool Accuracy

Precision in mold manufacturing goes beyond reaching a tight dimension once. It focuses on building a tool that can support repeatable dimensions, stable fit, and controlled performance throughout its planned production use. Precision mold manufacturing combines EDM machining, electrode planning, CMM inspection, and assembly verification into one connected process. Each stage depends on the one before it, and a gap in any of them shows up in the parts the mold produces.

Why EDM and Electrode Planning Matter for Fine Mold Features

CNC machining handles the bulk geometry of a mold, but it cannot reach every feature a precision tool requires. Sharp internal corners, deep ribs, narrow slots, and fine cavity details all need a different approach. That is where EDM comes in.

EDM, which stands for Electrical Discharge Machining, removes material from hardened steel using controlled electrical sparks rather than cutting tools. It produces features that CNC cannot consistently hold, and it reaches areas where a cutting tool physically cannot fit. For many complex or tight-tolerance mold features, EDM is often an essential process because it can form details that are difficult for cutting tools to reach consistently. It is a core part of what makes fine features achievable.

Sinker EDM and Wire EDM: Different Tools for Different Jobs

Two EDM methods are commonly used in precision mold manufacturing. Sinker EDM uses a shaped electrode to erode cavity features, deep ribs, and complex recesses. Wire EDM uses a thin wire to cut through hardened steel with high positional accuracy, and is typically used for inserts, ejector plates, and components requiring precise straight cuts or complex 2D profiles.

Both methods are sensitive to setup conditions. Machine calibration, dielectric fluid temperature, and electrode wear compensation all affect output accuracy. A precision mold manufacturer manages these variables actively rather than treating EDM as a routine operation.

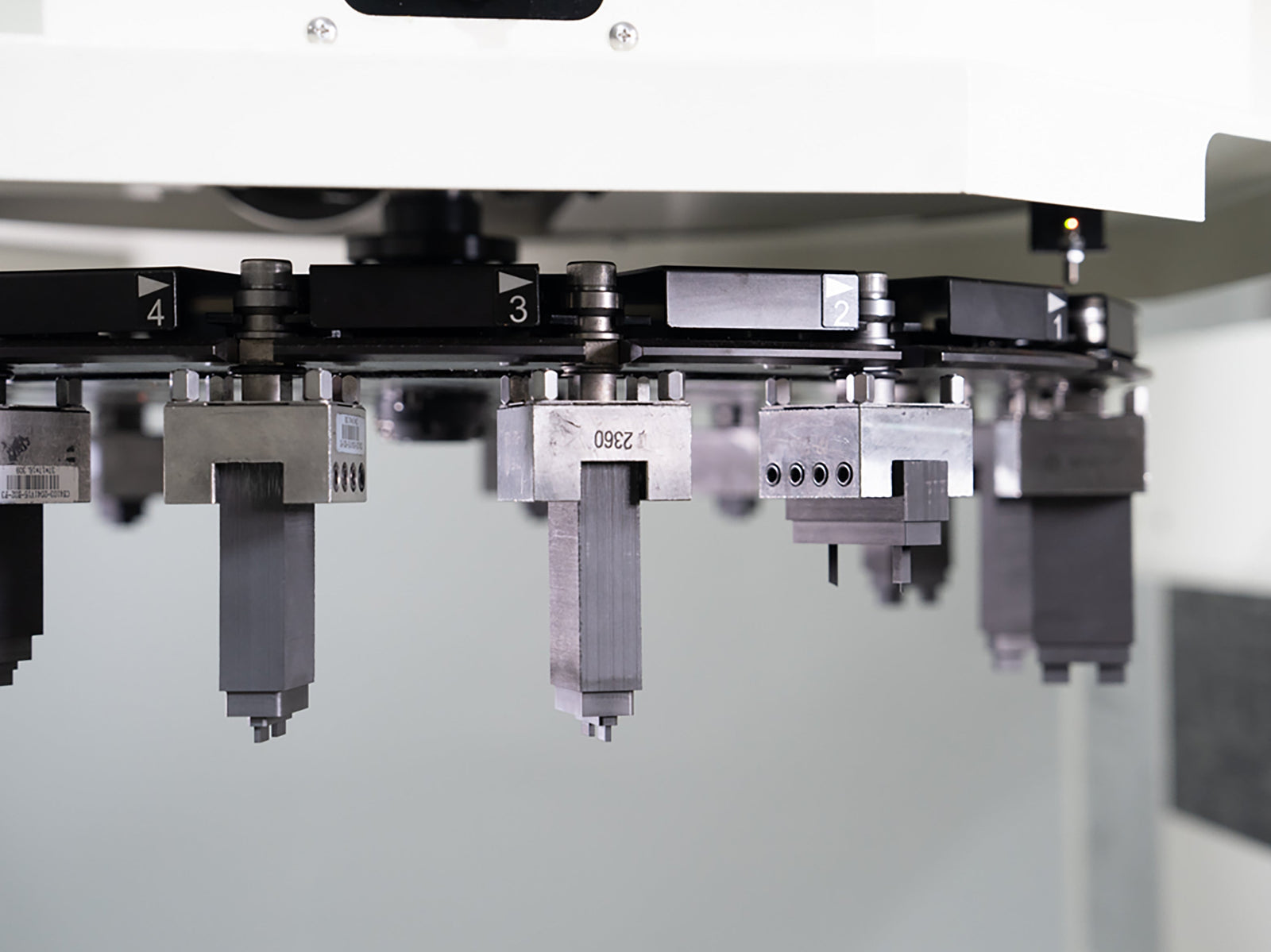

Electrode Planning and EDM Accuracy

In sinker EDM, the electrode shapes fine cavity details in the mold steel. Its form, surface condition, and positioning directly affect the accuracy of the feature produced in the mold. If the electrode is inaccurate or poorly positioned, that variation can transfer into the steel and may require additional correction later. Electrode planning includes designing, machining, inspecting, and positioning each electrode before EDM begins. For precision mold manufacturing, CMM inspection helps confirm that the electrode matches the required geometry before use. This reduces avoidable dimensional variation in fine mold features before the mold moves to polishing, assembly, and trial.

How CMM Inspection Supports Mold Component Accuracy

A CMM, or Coordinate Measuring Machine, measures the three-dimensional geometry of a mold component against its design specification. A probe contacts the part surface at defined points and records their exact position in space, producing a verified comparison between what was designed and what was actually produced.

In precision mold manufacturing, CMM inspection is not a single final check. It runs at multiple stages throughout the build, and each checkpoint serves a specific purpose.

Key stages where CMM inspection is applied:

• After CNC machining: Core and cavity dimensions are verified before EDM begins. A machining error caught here is straightforward to correct. The same error found after EDM and polishing requires significant rework.
• Electrode verification: Electrodes are measured on CMM before use to confirm their form matches the design. This directly protects EDM output accuracy.
• After EDM: Fine features are checked for correct depth, width, and positional accuracy before polishing starts.
• Before assembly: Individual components are re-verified to confirm they meet dimensional requirements as standalone pieces before being brought together as a complete tool.

Each CMM checkpoint creates a documented record. That documentation supports quality traceability and helps engineers narrow down where an issue may have been introduced during tooling, trial, or production.

Why Temperature Control Matters for CMM Accuracy

Metal expands and contracts with temperature changes. At precision tolerances, even small thermal shifts produce measurement errors that misrepresent actual part geometry. Precision mold manufacturers conduct CMM inspection in temperature-controlled environments, typically maintained around 20 degrees Celsius, so that measurement results reflect true dimensions rather than thermal variation.

This is why precision measurement depends on more than inspection equipment alone. The measurement environment, inspection method, and process discipline all affect whether the data can be trusted.

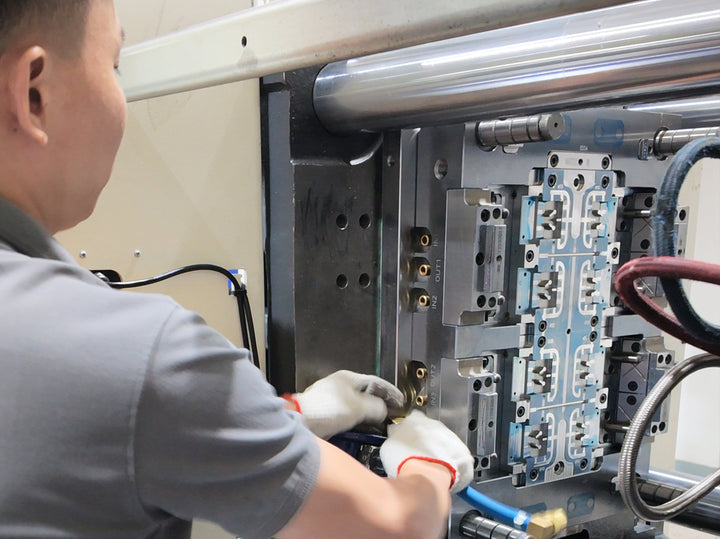

Why Mold Assembly Verification Is Part of Precision Control

Individual components that each pass CMM inspection can still produce problems at assembly if their relationships to each other are not verified after they come together. Assembly verification confirms that the complete tool, not just its individual parts, is correct.

This distinction matters. A core insert can be within tolerance on its own and still produce wall thickness variation if it does not register precisely to the cavity on every open-close cycle. An ejector system can have correctly dimensioned pins that bind during operation because their combined fit was never confirmed in the assembled state.

Assembly verification in precision mold manufacturing covers:

• Parting surface contact: Both mold halves must close evenly across the full parting face. Uneven contact creates flash and affects dimensional stability of molded parts.
• Core and cavity alignment: Positional accuracy between core and cavity is confirmed in the assembled state, not inferred from individual part measurements.
• Moving component function: Side actions, lifters, and ejector systems are tested for smooth, consistent travel within their designed range. Any binding or play gets corrected before trial.
• Cooling circuit integrity: Connections are verified for correct routing, leak-free sealing, and unobstructed flow before the mold is closed.

These checks can only be performed with the mold assembled. They validate the system as it will actually operate in production.

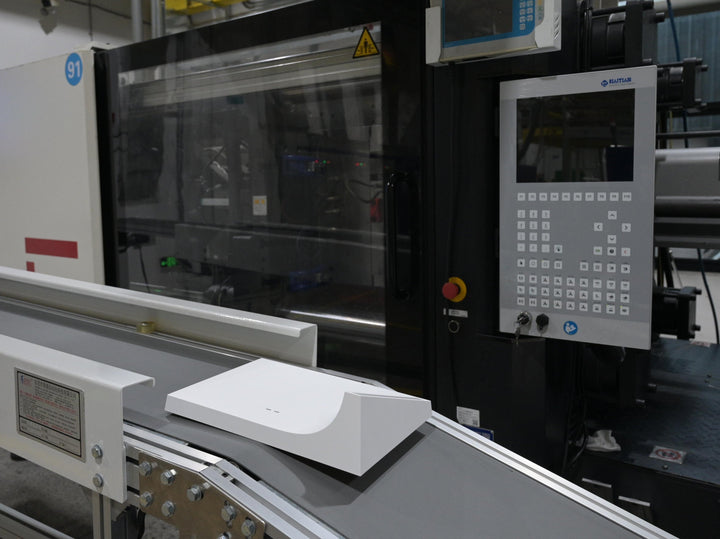

How Precision Manufacturing Supports Stable Injection Molding

The link between precision mold manufacturing and stable plastic mold production output is direct. A mold built to controlled tolerances, verified at key stages, and assembled with confirmed component relationships is better positioned to support stable part quality as production begins and continues.

When mold performance changes over time, the cause may relate to component fit, wear, maintenance, material behavior, process settings, or verification gaps. Clear inspection records make it easier to compare current conditions with the original tooling baseline.

Wear accelerates at areas of poor fit. Flash develops at parting surfaces that were not fully checked. Part dimensions shift because component relationships were assumed rather than confirmed.

Production programs running on precision-built tooling experience fewer interruptions, lower scrap rates, and more predictable maintenance intervals. The table below shows how specific precision manufacturing inputs connect to long-term production outcomes.

The table shows why precision mold manufacturing is a system rather than a single process. Each input protects a specific outcome, and the combination is what produces a tool that stays accurate and consistent over time.

Build Tooling That Holds Its Accuracy Through Production

Precision mold manufacturing is the result of connected decisions across EDM planning, electrode verification, CMM inspection at multiple stages, and full assembly confirmation before trial. Each stage protects the accuracy established by the one before it. A mold that reaches trial with all of these steps completed correctly is one that can be trusted to produce consistent parts from the start.

Precision Mold Manufacturing at WEILAN MFG

WEILAN MFG applies precision mold manufacturing across EDM machining, electrode planning, CMM inspection, and assembly verification before any mold goes to trial. Our engineering team manages each stage with documented checkpoints so that the tool accuracy built during manufacturing carries through into production. Contact WEILAN MFG to discuss your precision mold project with our team.

Frequently Asked Questions About Precision Mold Manufacturing

Q1. What Industries Typically Need Precision Mold Manufacturing?

Industries where a small dimensional error can cause a product to fail or not fit are the ones that rely on precision mold manufacturing most. Medical devices, automotive components, electronics, and optical parts are common examples. In these applications, parts often need to meet tight tolerances to assemble correctly, seal properly, or function safely. The tighter the requirement, the more important it is that the mold is built and verified to a high standard from the start.

Q2. How Does Steel Grade Affect Precision Mold Performance Over Time?

Steel grade affects wear resistance, dimensional stability, machining time, and maintenance planning. Hardened tool steels are often selected for molds that need longer production life or tighter dimensional control. Softer steels may be suitable for prototype tooling, lower-volume programs, or applications where long mold life is not the main requirement. The right choice depends on expected volume, plastic material, surface requirements, and the maintenance plan.

Q3. What Is First Article Inspection and Why Does It Matter for Precision Tooling?

First Article Inspection, often called FAI, is a detailed check of the first parts produced by a new mold under real production conditions. It compares the actual part dimensions and appearance against the drawing requirements to confirm the mold is producing what it should. For precision tooling, FAI is the final confirmation that all the design, machining, and assembly work has translated correctly into the molded part. If something is off, it is identified and corrected before full production begins.

Q4. What Is the Practical Difference Between a Precision Mold Manufacturer and a Simpler Tooling Program?

Precision mold manufacturing places more focus on tolerance planning, material selection, EDM control, staged inspection, and assembly verification. This approach is often needed for parts with tight fits, fine features, demanding surfaces, or long production requirements. Simpler tooling programs may still be appropriate for lower-volume or less demanding applications. The right level of tooling should match the part requirements and production goals.

Q5. How Does Precision Mold Manufacturing Affect Part Consistency Over a Long Production Run?

A mold built with controlled tolerances and verified before production is better positioned to support consistent output over time. When component fit, moving systems, cooling circuits, and key dimensions are checked before trial, the production team has a clearer baseline for future maintenance and troubleshooting. Inspection records also help compare later mold conditions with the original build data when dimensional changes appear.
