Injection Molding vs CNC Machining vs 3D Printing: Differences and How to Choose for Your Business

Every successful product starts with a critical decision that determines its price, quality, and time to market. Choosing between injection molding, CNC machining, and 3D printing is not just a technical choice; it is a business strategy. One method might save you money today but fail during mass production, while another could offer perfect precision at a cost that eats your entire profit margin. Understanding these manufacturing pillars is the key to scaling your business without unnecessary risks.

Process Overviews of Injection Molding, CNC Machining and 3D Printing

Choosing the right production path requires a clear grasp of how each technology transforms raw material into a finished part. Each method follows a distinct physical logic that influences everything from design to final cost.

Injection Molding

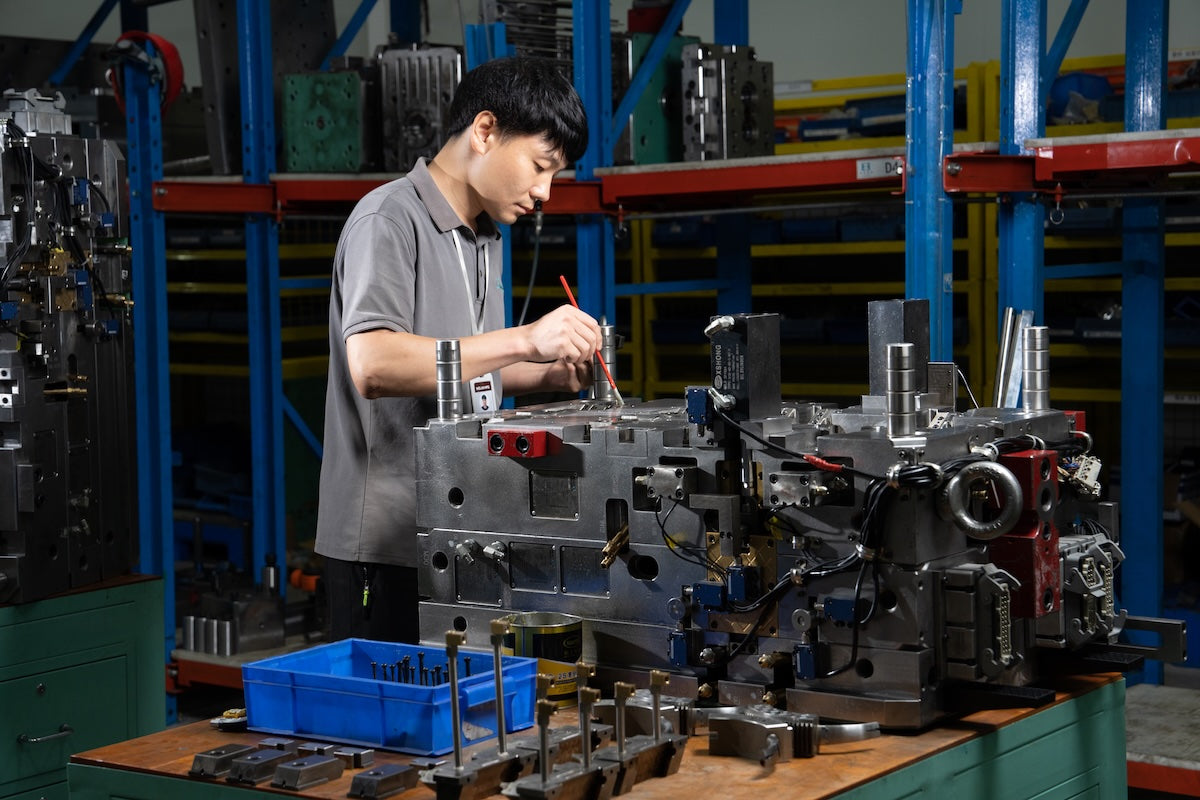

Injection molding is a formative manufacturing process. It works by melting plastic pellets into a liquid state and forcing them under immense pressure into a precision-engineered steel or aluminum mold. Once the plastic fills the cavity and cools, it solidifies into the final shape. This process is the backbone of the modern world. Almost every plastic item you touch, from your toothbrush to your car dashboard, was likely created this way.

The primary stres ability to produce thousands or even millions of identical parts with incredible speed and congth of this method is itnsistency. While the initial setup requires creating a complex mold, the efficiency gained at scale is unmatched by any other plastic manufacturing technique. It provides a level of repeatability that ensures the first part is identical to the millionth part.

CNC Machining

Computer Numerical Control, or CNC machining, is a subtractive process. Instead of building a part or filling a mold, it starts with a solid block of material called a billet. A high-speed cutting tool then moves across the block, carving away material to reveal the final shape. It is much like a sculptor working with stone, but with the precision of a computer.

CNC machining is famous for its ability to work with an enormous range of materials, including various plastics and high-strength metals. Because it does not require a mold, it is an excellent choice for functional parts that need to be extremely accurate or for parts that must withstand heavy mechanical stress. The ability to switch between aluminum, steel, and plastics on the same machine makes it highly versatile.

3D Printing

3D printing, officially known as additive manufacturing, builds parts layer by layer from the bottom up. A digital file guides the printer to deposit material only where it is needed. This method has evolved from a tool used mainly for visual models into a legitimate industrial solution for complex geometries.

Technologies like Selective Laser Sintering (SLS) or Stereolithography (SLA) allow for the creation of internal structures that are physically impossible to make with a drill or a mold. It requires no specialized tooling or setup, which makes it the fastest way to turn a digital idea into a physical object that you can hold in your hand. This speed is vital for businesses that need to test multiple versions of a design in a single week.

Technical Comparison: Accuracy, Strength, and Design Flexibility Across Three Processes

Beyond the basic mechanics, it is essential to evaluate how these processes affect the physical properties of the part. The way a part is made changes how it handles heat, pressure, and daily wear.

Material Durability and Structural Integrity

One of the most important technical concepts is whether a part is isotropic. An isotropic part has the same strength in all directions. Injection molding and CNC machining produce isotropic parts because the material structure is solid and continuous. In contrast, many 3D printed parts are anisotropic. Because they are built in layers, the bonds between those layers are often weaker than the material itself.

• Molded Parts: Benefit from uniform material density and high pressure, which significantly minimizes internal air pockets and voids.
• Machined Parts: Maintain the original properties of the raw material block, offering the highest structural reliability.
• Printed Parts: May snap along the layer lines if placed under significant tension or bending force.

Precision Standards and Surface Aesthetics

Precision is where CNC machining truly shines. It can achieve tolerances as tight as plus or minus 0.001 inches, which is essential for parts that must fit together perfectly in an engine or a medical device. Injection molding also offers high precision, but it is subject to the way plastic shrinks as it cools. Most molded parts adhere to international standards such as ISO 20457 or SPI classifications to ensure functional consistency.

3D printing has improved significantly, but most affordable methods still leave visible layer lines on the surface. If your part needs a mirror-like finish or a specific texture, injection molding is the most versatile option since the texture is built directly into the mold face.

Design Flexibility and Manufacturing Constraints

Each process has its own set of rules. 3D printing is famous for having very few rules, allowing for shapes that would otherwise be impossible. However, if you plan to move to injection molding later, you must design with draft angles so the part can slide out of the mold. You also have to maintain uniform wall thickness to prevent the plastic from warping.

CNC machining requires tool access, meaning the cutting bit must be able to reach every area it needs to carve. A deep, narrow hole might be easy to print but impossible to machine. Understanding these constraints early saves you from having to redesign your entire product when you are ready to scale up production. This planning stage is often called Design for Manufacturing (DFM).

Economic Analysis: Evaluating Total Cost of Ownership and ROI at Scale

For a business owner or a purchaser, the technical specs are only half of the story. The ultimate goal is to find the most cost-effective path that maintains the necessary quality.

Total Cost of Ownership and Tooling Amortization

The primary barrier to injection molding is the substantial upfront investment; a mold requires thousands of dollars in capital expenditure before production even begins. However, after creating the mold, the cost per part becomes very minimal, at times even mere cents. The upfront cost of 3D printing is zero, although its cost per part remains high due to time required in making the part.

In order to calculate the Return on Investment, one has to consider the total volume. Amortizing a 10,000-dollar mold among 20,000 parts means that the cost per part will be only 50 cents. Combined with low material costs, injection molding offers a superior price-per-part at scale, making it the most economical choice for high-volume production.

Speed to Market and Production Timelines

In business, time is money. Each manufacturing method has a different speed profile that impacts your ability to respond to market trends or customer feedback.

• 3D Printing: 24 to 48 hours. Best for quick iterations and failing fast during the early development stages.
• CNC Machining: 5 to 10 days. Best for functional testing and bridge production when you need a small batch of real parts.
• Injection Molding: 3 to 10 weeks. Best for long-term supply chain stability and high-volume consistency.

Many smart businesses use bridge tooling, which involves using CNC machining to create a temporary aluminum mold. This allows them to start selling products while they wait for their high-volume steel mold to be finished.

Sustainability and Material Efficiency

Sustainability is becoming a major factor in corporate purchasing. CNC machining is inherently wasteful because it carves away a large portion of the original block, leaving behind chips. While these can be recycled, the energy used to create and then recycle that waste is significant.

3D printing is very efficient because it only uses the material needed for the part. Injection molding is also highly efficient. Most modern molding facilities use a closed-loop system where the excess plastic from the runners is reground and put back into the machine. This minimizes waste and lowers the overall environmental footprint of the production run.

How to Choose the Right Method

Deciding on a manufacturing method is easier when you view it through the lens of your current business stage. Your needs change as your product moves from an idea to a reality.

Volume-Based Decision Frameworks

The simplest way to choose is by looking at your numbers. The following tiers help define which method provides the most value at different scales of production.

• Low Volume (1 to 100 Units): Stick with 3D Printing or CNC. They allow you to make changes quickly without losing money on expensive tools.
• Mid Volume (100 to 1,000 Units): Use CNC Machining or Rapid Tooling. This is the bridge where you test the market and confirm your design is final before committing to a permanent mold.
• High Volume (1,000+ Units): Transition to Injection Molding. This is the only way to achieve the lowest unit price and maintain high consistency for thousands of customers.

Application Requirements and Environmental Factors

You should also think about the environment that your part will operate in. Medical devices requiring high-temperature sterilization often necessitate specific high-performance polymers that are best processed via injection molding or precision CNC machining.

If your product is a custom-made bracket for high-performance racing vehicles, you might want the brute strength provided by a high-strength aluminum component produced via CNC machining. If you are making an architectural model with intricate curved shapes, you should go for 3D printing. You should always select a process that fits into the critical path of your product, whether it is strength, aesthetics, or volume production. Resistance to chemicals, UV rays, and flame retardant capabilities will lead you to certain materials that can only be used with specific manufacturing processes.

Frequently Asked Questions

Q1: Which Is Cheaper: 3D Printing or Injection Molding?

The answer depends entirely on your quantity. If you only need a few parts, 3D printing is significantly cheaper since there are no tooling costs. As the production volume increases, injection molding becomes significantly more cost-effective, as the price per part drops significantly with volume. Generally, the point where molding becomes more economical starts at about 500 to 1,000 pieces.

Q2: Is CNC Machining Better Than 3D Printing?

Again, the answer depends on your specific needs. CNC is superior for precision, surface finishes, and material strength. It can work with a wider range of certified alloys and engineering-grade polymers than most additive manufacturing processes can support. On the other hand, 3D printers excel at creating complex organic shapes that cannot be achieved with a cutting tool and are generally quicker for making a single prototype.

Q3: What Are the Disadvantages of Injection Molding?

The primary disadvantage is the high initial cost and the significant time needed to prepare a mold. If a designer finds an error after the mold is fabricated, fixing it becomes very expensive and may sometimes be impossible. This is why it is advised to create prototypes first with 3D printing or CNC machining before committing to injection molding.

Q4: Can 3D Printing Replace Injection Molding for Mass Production?

As of 2026, while high-speed additive technologies have advanced, they still cannot compete with the rapid cycle times of injection molding for mass production. While they can handle mid-volume production well, injection molding allows for fast cycle times of just a few seconds, whereas 3D printing still takes minutes or hours per piece. For producing millions of units, the molding method remains the global industry standard.

Q5: When Should I Switch From CNC to Injection Molding?

You should consider switching when your monthly production volume reaches a point where the total price of CNC machining exceeds the cost of a mold plus the molded parts. Another reason to switch is if you need a specific surface texture or a material that is difficult to machine effectively. Most businesses make the jump once they have a validated design and a growing customer base.
