Injection Molding for Medical Devices: ISO 13485, Cleanroom Control, and Biocompatibility

Introduction of Medical Molding

Regulatory compliance in medical injection molding is not simply about producing a dimensionally correct part. It is actually about verifying the capability of a controlled and validated process to reliably produce safe components for human use.

The stakes are extremely high for precision, cleanliness, and safety in the medical device manufacturing industry. Compliance extends beyond the physical part to include the rigorous documentation of the process used in its creation. The aim is zero defects, as failures in medical device production equate to extreme health and legal risks. This article will outline how engineering controls, cleanrooms, and validation intersect to meet strict healthcare requirements.

Producing high-precision plastic parts requires absolute control over material consistency and defect elimination. Even minute changes in dimensions, excess plastic flash, or poor surface quality can lead to device failure. Diagnostic components, surgical device parts, and drug-delivery housings require precise repeatability. A small defect in a syringe component, for example, can lead to improper medication dosing. To eliminate these risks, manufacturers rigorously adhere to government regulations and international quality standards.

FDA and ISO Frameworks

The US market relies heavily on specific government rules and international quality standards. Together, these frameworks mandate strict traceability, document control, and risk-based manufacturing practices for every plastic component.

The Food and Drug Administration (FDA) enforces Current Good Manufacturing Practices (cGMP) under Title 21 CFR Part 820. This federal regulation requires device makers to establish strict quality control systems. Factories molding plastic parts for surgical tools or bodily implants must follow these FDA expectations rigidly. The rules dictate how a facility handles design transfer, purchasing controls, and Corrective and Preventive Action (CAPA) protocols. If a part fails an inspection, the CAPA system forces the manufacturer to find the root cause and document the fix permanently.

Concurrently, ISO 13485 acts as the primary global standard for quality management systems in the medical field. This standard dictates how a factory handles document control, revision history, and daily mold maintenance. Factory managers must track material lots meticulously. They trace the exact batch of raw plastic resin used to make a specific finished medical component. This precise level of tracking guarantees that if a raw material defect occurs later, the factory can isolate the affected parts quickly and recall only the exact impacted units. ISO 13485 heavily influences day-to-day engineering decisions, ensuring every worker follows the exact same written instructions during every single shift.

Technical Pillars of Compliance

Achieving repeatable quality requires advanced engineering standards alongside specialized factory equipment. Manufacturers must control every processing variable closely to prevent dimensional drift and contamination during the daily production runs.

The Precision of All-Electric Injection Molding

All-electric injection molding machines stand as the industry standard for cleanroom medical manufacturing. Traditional hydraulic machines use pressurized oil, creating a high risk of fluid leaks and airborne mist. All-electric machines eliminate this hydraulic fluid risk entirely.

Running cleaner provides just the first benefit. Electric presses give engineers superior control over injection speeds and clamp motion. This precise physical control reduces particulate generation, keeping the cleanroom air significantly safer. Electric machines also provide the exact micro-movements needed for molding microscopic features and thin-wall medical components. They repeat the exact same motions cycle after cycle, outperforming traditional hydraulic systems. This consistency reduces scrap rates and ensures that part number one million looks exactly like part number one.

Decoupled Molding Robustness

Scientific molding is a data-driven approach to plastic injection molding that ensures tighter control over the fill, pack, and cool phases. Within this field, Decoupled Molding plays a crucial role in ensuring compliance by separating the filling and packing stages within the steel mold.

Because plastic resin viscosity varies from batch to batch due to minute chemical changes, using the exact same pressure for both filling and packing would cause part dimensions to vary. Decoupled Molding ensures these variations are absorbed without causing defects. This is achieved by filling the mold to 95 percent at a set speed, then switching to a set pressure for the final 5 percent. This allows engineers to manage viscosity shifts seamlessly, keeping the entire process compliant and ensuring the parts remain perfectly sized.

Process Validation Protocols

Process validation mathematically proves that the equipment and parameters will reliably produce conforming parts. To satisfy FDA auditors, engineers divide this process into three main phases. The first is Installation Qualification (IQ), which ensures all equipment and tools match the manufacturer's physical specifications. This involves verifying that everything is properly set up, from the wiring to the cooling lines.

The second phase, Operational Qualification (OQ), establishes the acceptable parameter limits. During this step, engineers push machine settings to their extremes to determine the absolute boundaries for producing quality parts. Finally, Performance Qualification (PQ) involves running the machine under normal, daily conditions to prove long-term stability.

After the PQ is approved, this process window becomes a "Golden Tool." The machine parameters remain strictly locked in the computer. Altering these locked PQ parameters triggers costly revalidation efforts, as unapproved changes violate FDA compliance rules. A locked process guarantees that no operator can change the injection speed or mold temperature randomly.

Cleanrooms and Bioburden Management

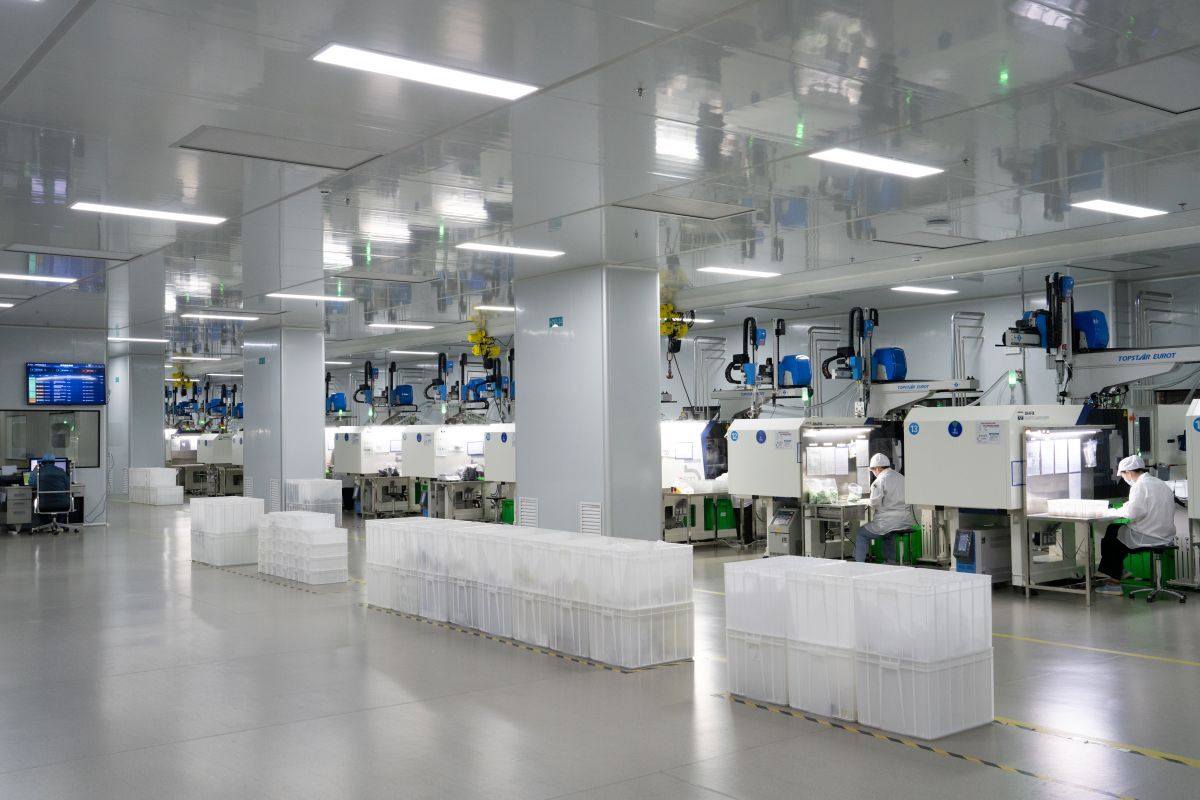

In medical molding, factories utilize ISO Class 7 or Class 8 cleanrooms to strictly limit airborne dust and debris. Under the ISO 14644-1 standard, these classifications determine exactly how many microscopic particles can exist in a single cubic meter of air, specifically those measuring 0.5 microns or larger. For context, a single strand of human hair measures about 70 microns thick.

An ISO Class 8 cleanroom allows a maximum of 3,520,000 of these tiny particles per cubic meter. An ISO Class 7 environment maintains a much tighter standard, capping the limit at just 352,000 particles. To achieve these precise metrics, the cleanroom uses industrial HEPA filters to scrub the environment. A Class 8 room typically replaces its entire air volume 20 to 25 times per hour, while a cleaner Class 7 room requires up to 60 total air changes per hour.

This strict dust-control standard plays a pivotal role in medical manufacturing. If airborne particles settle onto a freshly molded plastic part, they can ruin the surface finish or compromise how two components seal together. For devices like syringes or diagnostic equipment, even a single speck of dust can cause the final product to fail a quality inspection.

However, for high-risk items like fluid-path components or bodily implants, simply controlling dust falls short. Manufacturers must also control microbial bioburden and endotoxins to ensure absolute patient safety. Endotoxins are harmful bacterial remnants that survive basic cleaning and cause severe fevers if they enter the human bloodstream.

To maintain both the particulate standards and the microbial limits, factory workers follow strict gowning procedures. They wear hairnets, gloves, and full-body cleanroom suits to prevent shedding human skin cells onto the production floor. The factory also enforces controlled material flow and strict line clearance procedures to prevent cross-contamination between different product runs. Finally, workers utilize specialized packaging controls right at the molding press to seal and protect the parts before they ever leave the cleanroom environment.

Material Safety and Biocompatibility

The selection of the appropriate plastic dictates the medical product's safety. The plastic used in the medical device must be able to withstand chemical stability tests and human tissue contact safety evaluations.

Medical-grade plastics such as PEEK, polycarbonate, and silicones are selected by engineers based on strict criteria. These materials must be able to pass ISO 10993 or USP Class VI biocompatibility testing. The stringency of the testing depends on the duration of contact with the human body. A plastic surgical device in contact with the skin for two minutes has very different testing criteria from a plastic joint implanted in the body for ten years. The plastic must be tested for cytotoxicity to ensure it does not kill human cells, and it must not cause skin irritation or sensitization.

Moreover, the selected plastic must be able to withstand harsh sterilization. Hospitals sterilize medical devices using high doses of gamma radiation, the toxic gas ethylene oxide (EtO), or extreme heat from autoclaving. The plastic must not melt, crack, become brittle, or release toxic chemicals during the extreme sterilization process. The processing conditions in the factory must also be tightly controlled to ensure the selected resin maintains its original biocompatibility ratings. If the molding machine heats the plastic resin too high, the chemical structure degrades, causing the final product to fail biocompatibility testing.

Common Production Compliance Risks

Despite a perfectly validated process, manufacturers are still at risk for FDA issues during full-scale production. Maintaining strict discipline in the plant helps manufacturers avoid failed FDA audits, costly nonconformances, and massive public product recalls.

One of the biggest risks for FDA nonconformance in a manufacturing plant comes from unauthorized machine parameter changes. In some cases, operators might want to tweak a machine's parameters slightly in order to correct a minor visual defect, like a blemish on the surface of a molded plastic part. If they make this change without formal engineering approval on a validated medical mold, they have directly broken FDA regulations. In this case, the FDA considers the part adulterated, even if it has perfect physical dimensions.

There is a large risk involved with lapses in cleanroom discipline, especially concerning FDA nonconformance and public safety. If an employee forgets to wear gloves while working with a machine, they have just introduced potentially hazardous bioburden into an entire batch of product. Incomplete Device History Records (DHRs) create similar FDA-related problems for device manufacturers. If the facility loses the physical or electronic paperwork that correlates a completed device with the original raw material lot from which it was made, that device is now useless to the medical industry. Ultimately, strict traceability, rigorous training, and absolute discipline are required to keep these severe risks at bay.

Choosing a Molding Partner

The choice of the right contract manufacturer will be the key to the success of your medical product launch. A reliable partner will have a mature quality system, state-of-the-art cleanroom equipment, and in-depth validation engineering expertise.

You must confirm that the molding company has an active ISO 13485 certification. Additionally, you should closely check their FDA facility registration status. You must also ensure the facility has invested in state-of-the-art equipment, such as all-electric machines, and can demonstrate Decoupled Molding technology. Traditional hydraulic machines will struggle to meet the stringent cleanliness requirements of the medical industry.

At WEILAN MFG, we can be your reliable partner. We specialize in precise mold making and medical-grade injection molding. We work under the highest quality standards according to the ISO 13485 quality system. Our molds are made using the latest scientific validation methods for stable, long-term production cycles. We have the capabilities for the entire production process, from mold design to CNC machining and assembly. Are you a medical device brand looking for a practical solution? Do you need consistent, audit-ready part production? We are here to ensure a smoother FDA submission process for your final medical device.

FAQs

Q1: What is ISO 13485?

ISO 13485 is a standard that specifies a quality system with a very high level of detail, focusing on material traceability, risk control, and the manufacturing process. This ensures the supplier meets the stringent quality levels set by regulatory bodies without any room for error. Factories operating under this system have very stringent document control in place to ensure all parts are built to the same high level of quality.

Q2: How does Decoupled Molding help?

Decoupled Molding is a process in which the mold fill and pack phases are separated. This process automatically adjusts itself in accordance with the viscosity of the plastic. This is highly advantageous because the chances of dimensional failure are minimized. Instead of relying on guesswork, the exact transfer point for the plastic flow is determined using data curves.

Q3: Why control cleanroom bioburden?

The majority of standard cleanrooms have air filters to filter out visible dust particles. However, in medical cleanrooms, it is not just dust particles that have to be controlled. These facilities must actively control microscopic organisms to avoid severe patient infections caused by implants and other medical devices. Regular environmental tests are conducted to ensure the absence of dangerous bacteria in the air and on the surfaces.

Q4: What is a locked process?

A locked process refers to a set of precise machine parameters that have been established and approved during the validation process. Changing these numbers without engineering authorization means that the machine will have to be revalidated to ensure FDA compliance. Digital passwords and software locks are implemented to guarantee that these critical numbers are not altered by unauthorized personnel.
